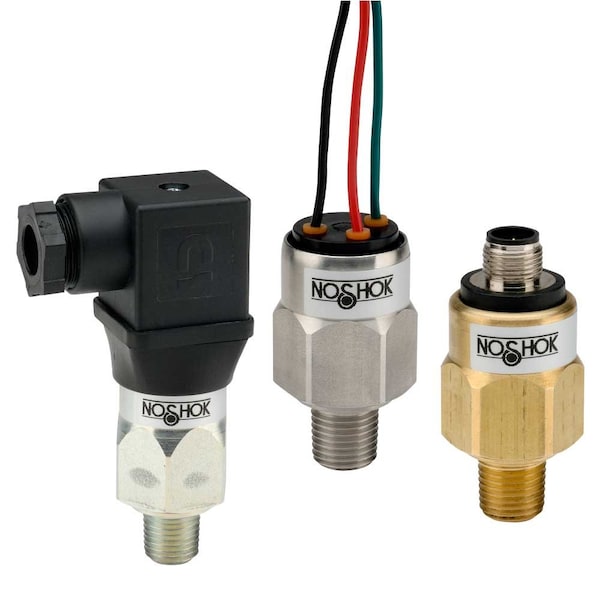

Interruptor de presión de la Serie 200, acero, SPDT, 7/16-20 SAE, 1000-6000 psi, Torre Weatherpack.
| Item | Mechanical Pressure Switch |
|---|---|
| Pressure Switch Application | Hydraulics and Pneumatics, Pumps and Compressors, Tank Monitoring, Leak Detection, Water Management |
| Pressure Switch Factory On/Off Setting | Field Adjustable and/or Factory Set |
| Pressure Switch Electrical Contact Form | Single Pole Double Throw |
| Pressure Switch Action | Snap |
| Media Temp. Range | -4 to 176 deg F |
| Housing Material | Steel |
| AC Contact Rating | 5 A |
| Series | 200 |
| Process Connection | 7/16"-20 SAE Male |
| Wetted Materials | Zinc-Nickel, NBR |
| Ambient Temp. Range | -4 to 176 deg F |
| IP Rating | IP69 |
| DC Contact Rating | 5 A |
| Max. Pressure | 7,500 psi, 9,000 psi |
| Electrical Connection | 3-Pin Male Attached to Flying Leads |
| Package Quantity | 1 |
