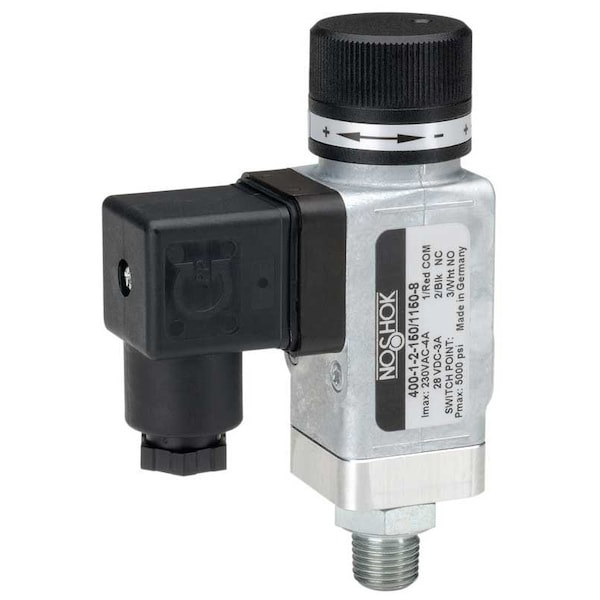

Interruptor de presión mecánico de servicio pesado de la Serie 400, 1 interruptor SPDT, 1/4 NPT Macho, de 450 psig a 4,600 psig (5,000 psig), Hirschmann.
| Item | Mechanical Switch |
|---|---|
| Pressure Switch Application | Hydraulics and Pneumatics, Mobile Hydraulics, Power Generation, Pumps and Compressors, Tank Monitoring, Water Management |
| Pressure Switch Factory On/Off Setting | Field Adjustable and/or Factory Set |
| Pressure Switch Electrical Contact Form | Single Pole Double Throw |
| Standards | European Conformity (CE) Compliant to European Standard (EN) 73/23/EWG Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection |
| Ambient Temp. Range | -4 to 176 deg F |
| Electrical Connection | DIN EN 175301-803 Form A |
| Wetted Materials | Stainless Steel, NBR |
| DC Contact Rating | 6 A |
| Max. Pressure | 300 to 5000 psig |
| IP Rating | IP65 |
| AC Contact Rating | 6 A |
| Series | 400 |
| Housing Material | Die-Cast Zinc |
| Process Connection | 1/4" NPT |
| Media Temp. Range | -4 to 176 deg F |
| Package Quantity | 1 |
