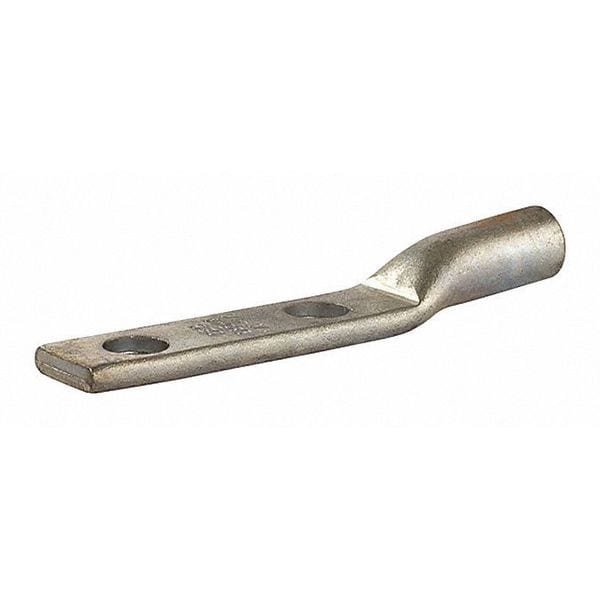

Al/Lug 1/0 Awg Nema Mtg Spacing
Traducción: Espaciamiento de montaje Nema para Al/Lug de 1/0 Awg.
| Cable Size | 1/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.847 in |
| Material | Electro-Tin Plated High-Conductivity Aluminum |
| Length | 4.748 in |
| Color Code | Tan |
| Item | Two-Hole Lug Compression Connector |
| Stud Size | 1 to 2 |
| Barrel Length | 1.2 |
| Color | Tan |
| Number of Holes | 2 |
| Size | L=4.74 - W=.84 - OD=.63 - ID=.39 |
| Standard | UL486 |
| Voltage Rating | 600 V |
| Environmental Conditions | 90 C |
| Application | Terminate, Splice, Tap Power Connectors |
| Mounting | 0.5 Mounting (Holes) |
| Type | Standard Barrel, Barrel - Two Hole |
| Tang Length | 3.12 |
| Certifications | cULus |
| Finish | Tin Plated |
| Tang Thickness | 0.24 |
| Ul File No | E155027 |
| Ul Standard | UL 486A-486B |
| Mounting Bolt Size | 0.5 |
| Temp Rating | 90C, AL9CU |
| Wire Cable Class | Class B, Class C |
| Expanded Wire Range | 1/0 AWG – 6 AWG |
| Barrel Inside Diameter | 0.39 |
| Conductor Type | Copper, Aluminum |
| Barrel Outside Diameter | 0.63 |
| Assortment | Terminations |
| Package Quantity | 1 |
