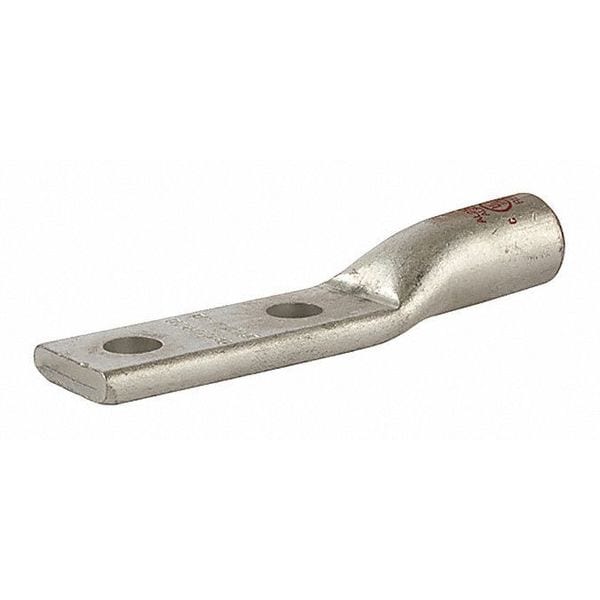

Espaciado de montaje Nema de 250 MCM/min en el puerto/A.
| Cable Size | 250 MCM |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.26 in |
| Material | Electro-Tin Plated High-Conductivity Aluminum |
| Length | 5.307 in |
| Color Code | Red |
| Item | Two-Hole Lug Compression Connector |
| Stud Size | 1 to 2 |
| Barrel Length | 1.5 |
| Color | Red |
| Application | Terminate, Splice, Tap Power Connectors |
| Mounting | 0.5 Mounting (Holes) |
| Number of Holes | 2 |
| Environmental Conditions | 90 C |
| Size | L=5.30 - W=1.25 - OD=.920 - ID=.590 |
| Type | Standard Barrel, Barrel - Two Hole |
| Standard | UL486 |
| Voltage Rating | 600 V |
| Tang Length | 3.12 |
| Wire Cable Class | Class B, Class C |
| Barrel Outside Diameter | 0.92 |
| Ul File No | E155027 |
| Barrel Inside Diameter | 0.59 |
| Certifications | cULus |
| Conductor Type | Copper, Aluminum |
| Assortment | Terminations |
| Finish | Tin Plated |
| Mounting Bolt Size | 0.5 |
| Ul Standard | UL 486A-486B |
| Tang Thickness | 0.32 |
| Expanded Wire Range | 250 MCM – I /0 AWG |
| Temp Rating | 90C, AL9CU |
| Package Quantity | 1 |
