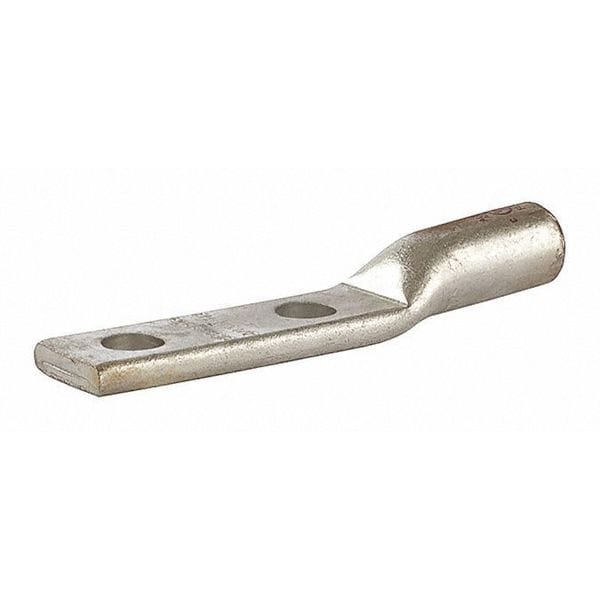

Al Lug 3/0 AWG NEMA montaje espaciado.
| Cable Size | 3/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.028 in |
| Material | Electro-Tin Plated High-Conductivity Aluminum |
| Length | 5 in |
| Color Code | Ruby |
| Item | Two-Hole Lug Compression Connector |
| Barrel Length | 1.4 |
| Stud Size | 1 to 2 |
| Color | Ruby |
| Mounting | 0.5 Mounting (Holes) |
| Environmental Conditions | 90 C |
| Standard | UL486 |
| Type | Standard Barrel, Barrel - Two Hole |
| Number of Holes | 2 |
| Voltage Rating | 600 V |
| Size | L=5.00 - W=1.02 - OD=.759 - ID=.479 |
| Application | Terminate, Splice, Tap Power Connectors |
| Temp Rating | 90C, AL9CU |
| Expanded Wire Range | 3/0 AWG – 2 AWG |
| Ul File No | E155027 |
| Assortment | Terminations |
| Tang Thickness | 0.28 |
| Barrel Outside Diameter | 0.76 |
| Certifications | cULus |
| Barrel Inside Diameter | 0.48 |
| Finish | Tin Plated |
| Conductor Type | Copper, Aluminum |
| Mounting Bolt Size | 0.5 |
| Ul Standard | UL 486A-486B |
| Wire Cable Class | Class B, Class C |
| Tang Length | 3.12 |
| Package Quantity | 1 |
