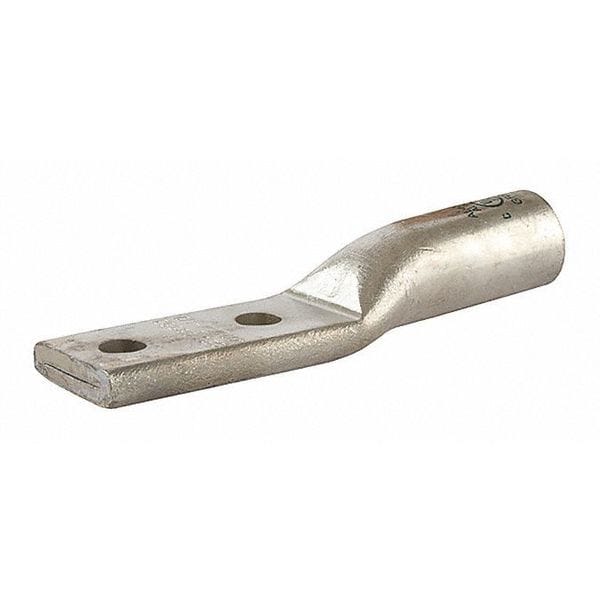

Al / lug 400 Mcm Nema NTG Espaciado.
| Cable Size | 400 MCM |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.606 in |
| Material | Electro-Tin Plated High-Conductivity Aluminum |
| Length | 6.429 in |
| Color Code | Green |
| Item | Two-Hole Lug Compression Connector |
| Stud Size | 1 to 2 |
| Barrel Length | 2.3 |
| Color | Green |
| Standard | UL486 |
| Voltage Rating | 600 V |
| Mounting | 0.5 Mounting (Holes) |
| Number of Holes | 2 |
| Size | L=6.42 - W=1.60 - OD=1.19 - ID=.759 |
| Environmental Conditions | 90 C |
| Type | Standard Barrel, Barrel - Two Hole |
| Application | Terminate, Splice, Tap Power Connectors |
| Finish | Tin Plated |
| Barrel Inside Diameter | 0.76 |
| Ul Standard | UL 486A-486B |
| Certifications | cULus |
| Ul File No | E155027 |
| Temp Rating | 90C, AL9CU |
| Barrel Outside Diameter | 1.19 |
| Conductor Type | Copper, Aluminum |
| Tang Length | 3.12 |
| Tang Thickness | 0.42 |
| Mounting Bolt Size | 0.5 |
| Assortment | Terminations |
| Expanded Wire Range | 400 MCM – 4/0 AWG |
| Wire Cable Class | Class B, Class C |
| Package Quantity | 1 |
