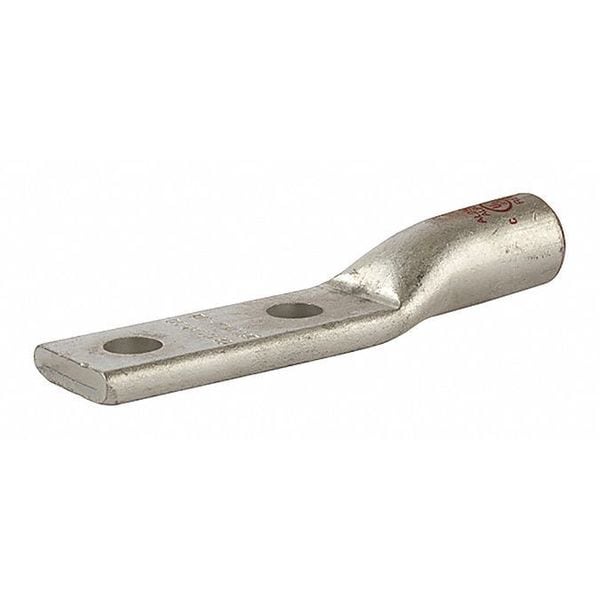

Espaciado de montaje NEMA de 750 MCM en el tornillo de terminal.
| Cable Size | 750 MCM |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.744 in |
| Material | Electro-Tin Plated High-Conductivity Aluminum |
| Length | 7.37 in |
| Color Code | Yellow |
| Item | Two-Hole Lug Compression Connector |
| Barrel Length | 3.2 |
| Stud Size | 1 to 2 |
| Color | Yellow |
| Standard | UL486 |
| Type | Standard Barrel, Barrel - Two Hole |
| Voltage Rating | 600 V |
| Mounting | 0.5 Mounting (Holes) |
| Environmental Conditions | 90 C |
| Application | Terminate, Splice, Tap Power Connectors |
| Number of Holes | 2 |
| Size | L=7.37 - W=2.18 - OD=1.60 - ID=1.02 |
| Ul File No | E155027 |
| Wire Cable Class | Class B, Class C |
| Barrel Inside Diameter | 1.03 |
| Assortment | Terminations |
| Ul Standard | UL 486A-486B |
| Finish | Tin Plated |
| Certifications | cULus |
| Tang Thickness | 0.55 |
| Barrel Outside Diameter | 1.6 |
| Mounting Bolt Size | 0.5 |
| Tang Length | 3.12 |
| Temp Rating | 90C, AL9CU |
| Conductor Type | Copper, Aluminum |
| Expanded Wire Range | 750 MCM – 500 MCM |
| Package Quantity | 1 |
