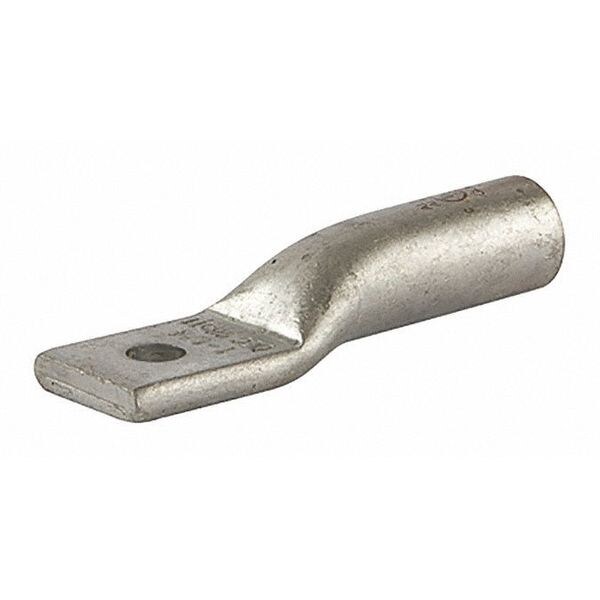

Terminal de compresión de aluminio/cobre para cable de calibre 1 con perno de 1/4 pulgadas. Tamaño 4.
| Cable Size | 1 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.728 in |
| Material | Electro-Tin Plated High-Conductivity Aluminum |
| Length | 2-1/2 in |
| Color Code | Gold |
| Item | One-Hole Lug Compression Connector |
| Barrel Length | 1.2 |
| Stud Size | 44930 |
| Color | Gold |
| Environmental Conditions | 90 C |
| Number of Holes | 1 |
| Type | Standard Barrel, Barrel - One Hole |
| Size | L=2.50 - W=.728 - OD=.531 - ID=.350 |
| Mounting | 1/4 Mounting Hole |
| Voltage Rating | 600 V |
| Application | Terminate, Splice, Tap Power Connectors |
| Standard | UL486 |
| Certifications | cULus |
| Tang Thickness | 0.18 |
| Temp Rating | 90C, AL9CU |
| Finish | Tin Plated |
| Tang Length | 0.88 |
| Mounting Bolt Size | 0.25 |
| Expanded Wire Range | 1 AWG – 6 AWG |
| Ul Standard | UL 486A-486B |
| Barrel Outside Diameter | 0.53 |
| Assortment | Terminations |
| Barrel Inside Diameter | 0.35 |
| Conductor Type | Copper, Aluminum |
| Ul File No | E155027 |
| Wire Cable Class | Class B, Class C |
| Package Quantity | 1 |
