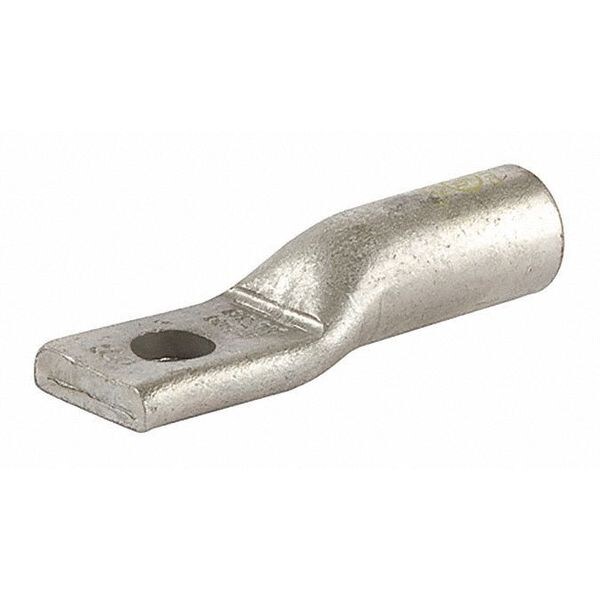

Terminal de compresión de aluminio/cobre para cable de calibre 2/0, tamaño de perno de 3/8 pulgadas.
| Cable Size | 2/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.937 in |
| Material | Electro-Tin Plated High-Conductivity Aluminum |
| Length | 2.807 in |
| Color Code | Olive |
| Item | One-Hole Lug Compression Connector |
| Stud Size | 44993 |
| Barrel Length | 1.3 |
| Color | Olive |
| Application | Terminate, Splice, Tap Power Connectors |
| Mounting | 3/8 Mounting Hole |
| Voltage Rating | 600 V |
| Size | L=2.80 - W=.937 - OD=.689 - ID=.440 |
| Type | Standard Barrel, Barrel - One Hole |
| Environmental Conditions | 90 C |
| Standard | UL486 |
| Number of Holes | 1 |
| Temp Rating | 90C, AL9CU |
| Tang Thickness | 0.24 |
| Burndy Tools | Y-35, T750, PAT750 |
| Nsi Tools | N1240, N12ID |
| Greenlee Tools | EK, RK HK1240 Series |
| Tang Length | 1.2 |
| Ul File No | E155027 |
| Assortment | Terminations |
| Expanded Wire Range | 2/0 AWG – 4 AWG |
| Al Conductor Max Amp | 230 |
| Conductors Count | 3 |
| Ilsco Tools | ILC-12, ILC-12H, ILC-15 |
| Certifications | cULus |
| Barrel Outside Diameter | 0.69 |
| Ul Standard | UL 486A-486B |
| Conductor Al Size Range | 250 MCM-6 AWG |
| Tb Die | 15,511 |
| Barrel Inside Diameter | 0.44 |
| Finish | Tin Plated |
| Conductor Type | Copper, Aluminum |
| Conductor Cu Size Range | 250 MCM-6 AWG |
| Huskie Tools | EP510C |
| Mounting Bolt Size | 0.375 |
| Max Torque | 360 |
| Cu Conductor Max Amp | 290 |
| Wire Cable Class | Class B, Class C |
| Tb Tools | TBM-15, TBM-14M, 13100A |
| Package Quantity | 1 |
