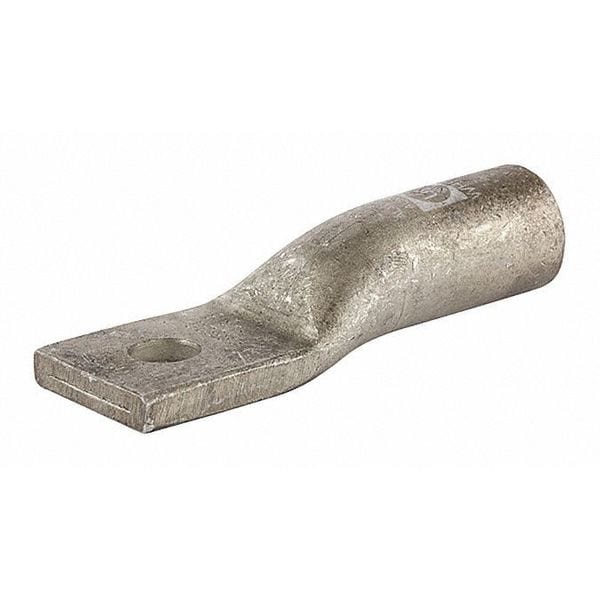

Terminal de compresión de aluminio/cobre para cable calibre 4/0 con tamaño de tornillo de 1/2 pulgadas.
| Cable Size | 4/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.15 in |
| Material | Electro-Tin Plated High-Conductivity Aluminum |
| Length | 3.429 in |
| Color Code | White |
| Item | One-Hole Lug Compression Connector |
| Barrel Length | 1.4 |
| Stud Size | 1 to 2 |
| Color | White |
| Number of Holes | 1 |
| Standard | UL486 |
| Voltage Rating | 600 V |
| Type | Standard Barrel, Barrel - One Hole |
| Environmental Conditions | 90 C |
| Size | L=3.42 - W=1.14 - OD=.838 - ID=.551 |
| Application | Terminate, Splice, Tap Power Connectors |
| Mounting | 1/2 Mounting Hole |
| Assortment | Terminations |
| Conductor Cu Size Range | 250 MCM-6 AWG |
| Conductor Type | Copper, Aluminum |
| Expanded Wire Range | 4/0 AWG – 1 AWG |
| Max Torque | 360 |
| Temp Rating | 90C, AL9CU |
| Finish | Tin Plated |
| Mounting Bolt Size | 0.5 |
| Ilsco Tools | ILC-12, ILC-12H, ILC-15 |
| Ul Standard | UL 486A-486B |
| Conductor Al Size Range | 250 MCM-6 AWG |
| Barrel Outside Diameter | 0.84 |
| Tang Thickness | 0.29 |
| Al Conductor Max Amp | 230 |
| Huskie Tools | EP510C |
| Tb Tools | TBM-15, TBM-14M, 13100A |
| Barrel Inside Diameter | 0.55 |
| Certifications | cULus |
| Tb Die | 15,534 |
| Tang Length | 1.31 |
| Nsi Tools | N1240, N12ID |
| Conductors Count | 3 |
| Ul File No | E155027 |
| Cu Conductor Max Amp | 290 |
| Greenlee Tools | EK, RK HK1240 Series |
| Burndy Tools | Y-35, T750, PAT750 |
| Wire Cable Class | Class B, Class C |
| Package Quantity | 1 |
