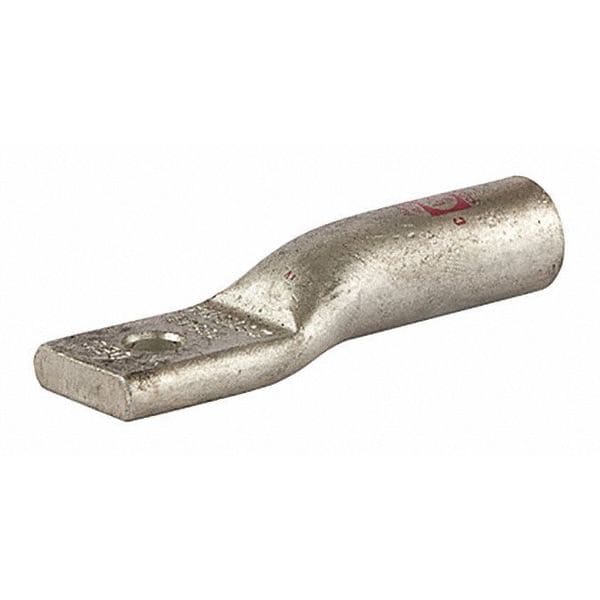

Terminal compresión de aluminio/cobre para cable de 500 MCM, tamaño de perno 1/2 pulgada.
| Cable Size | 500 MCM |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.787 in |
| Material | Electro-Tin Plated High-Conductivity Aluminum |
| Length | 4.748 in |
| Color Code | Pink |
| Item | One-Hole Lug Compression Connector |
| Barrel Length | 2.5 |
| Stud Size | 1 to 2 |
| Color | Pink |
| Standard | UL486 |
| Voltage Rating | 600 V |
| Size | L=4.74 - W=1.78 - OD=1.31 - ID=.838 |
| Application | Terminate, Splice, Tap Power Connectors |
| Number of Holes | 1 |
| Environmental Conditions | 90 C |
| Type | Standard Barrel, Barrel - One Hole |
| Mounting | 1/2 Mounting Hole |
| Wire Cable Class | Class B, Class C |
| Barrel Inside Diameter | 0.84 |
| Tang Length | 1.5 |
| Ul Standard | UL 486A-486B |
| Tang Thickness | 0.47 |
| Temp Rating | 90C, AL9CU |
| Finish | Tin Plated |
| Mounting Bolt Size | 0.5 |
| Certifications | cULus |
| Expanded Wire Range | 500 MCM – 250 MCM |
| Conductor Type | Copper, Aluminum |
| Assortment | Terminations |
| Ul File No | E155027 |
| Barrel Outside Diameter | 1.32 |
| Package Quantity | 1 |
