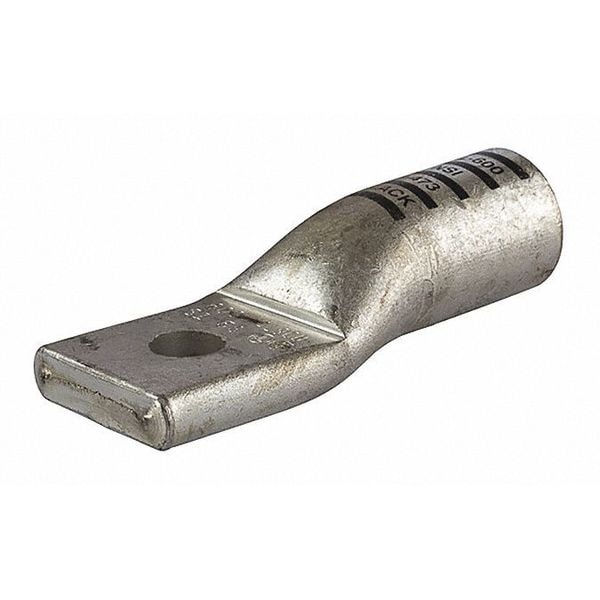

Terminal de compresión para Aluminio/Cobre de 600 Mcm con un tamaño de perno de 1/2 pulgadas.
| Cable Size | 600 MCM |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.957 in |
| Material | Electro-Tin Plated High-Conductivity Aluminum |
| Length | 5.118 in |
| Color Code | Black |
| Item | One-Hole Lug Compression Connector |
| Barrel Length | 2.6 |
| Stud Size | 1 to 2 |
| Color | Black |
| Mounting | 1/2 Mounting Hole |
| Application | Terminate, Splice, Tap Power Connectors |
| Number of Holes | 1 |
| Voltage Rating | 600 V |
| Type | Standard Barrel, Barrel - One Hole |
| Standard | UL486 |
| Environmental Conditions | 90 C |
| Size | L=5.11 - W=1.95 - OD=1.44 - ID=.921 |
| Ul File No | E155027 |
| Wire Cable Class | Class B, Class C |
| Tang Length | 1.87 |
| Ul Standard | UL 486A-486B |
| Conductor Type | Copper, Aluminum |
| Barrel Inside Diameter | 0.92 |
| Mounting Bolt Size | 0.5 |
| Finish | Tin Plated |
| Certifications | cULus |
| Temp Rating | 90C, AL9CU |
| Barrel Outside Diameter | 1.44 |
| Assortment | Terminations |
| Tang Thickness | 0.51 |
| Expanded Wire Range | 600 MCM – 250 MCM |
| Package Quantity | 1 |
