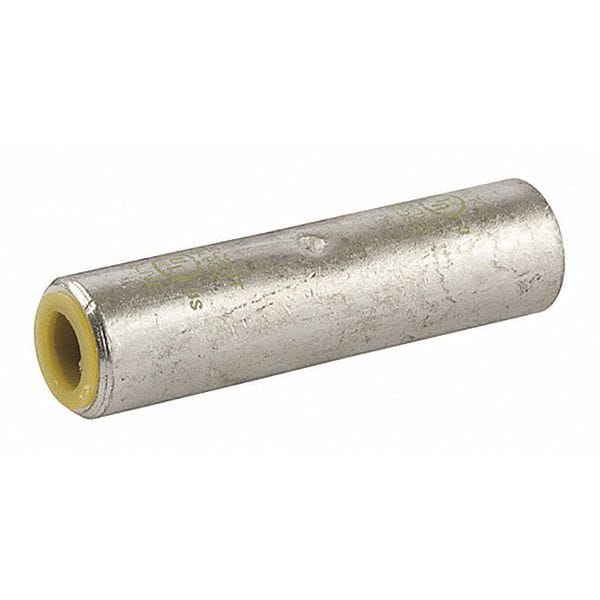

Unión de compresión de Aluminio/Cobre para cable calibre 2/0 AWG.
| Item | Compression Splice,Aluminum,2/0 AWG |
|---|---|
| Wire Range | 2/0 AWG |
| Material | aluminum |
| Color | Olive |
| Voltage Rating | 600 V |
| Conductor Range | 2/0 AWG (STR) |
| Environmental Conditions | 90 C |
| Type | Standard Barrel - ALCU Splice |
| Temperature Rating | 90° C |
| Application | Terminate, Splice, Tap Power Connectors |
| Finish | Tin Plated |
| Standard | UL486 |
| Number of Conductors | 2 |
| Size | L=2.62 - OD=.689 - ID=.440 |
| Ul Standard | UL486A, B |
| Wire Cable Class | Class B, Class C |
| Assortment | Aluminum Compression Splices |
| Temp Rating | 90C, AL9CU |
| Conductor Type | Copper, Aluminum |
| Ul File No | E155027 |
| Package Quantity | 1 |
