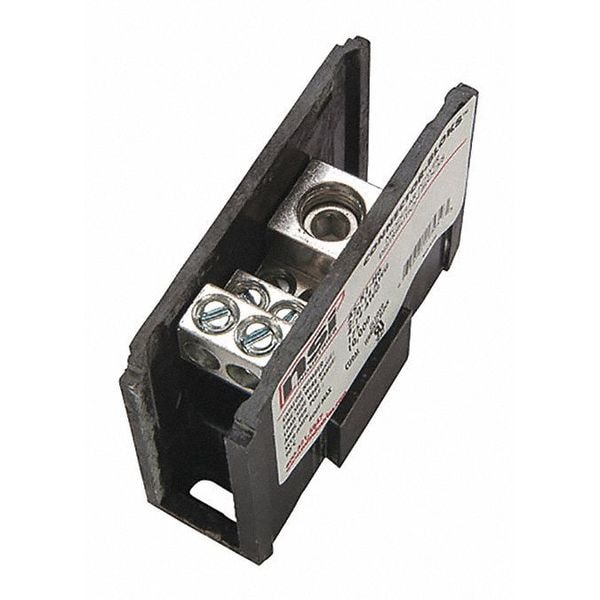

Bloque de terminales de 1X2/0-14 línea 6X4-14 carga.
| Item | Block,(1) 2/0-14 Line,(6) 4-14 Load |
|---|---|
| Max. Amps | 175 A/Pole |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | 2/0-14 AWG |
| Secondary Connection/Pole | 6 |
| Secondary Wire Range (AWG) | 4-14 AWG |
| Voltage Rating | 600V |
| Standards | Recognized to UL1059 |
| Depth | 2.9 in |
| Width | 1.04 in |
| Length | 2.34 in |
| Mounting | Two Mounting Holes |
| Application | Terminate, Splice, Tap Power Connectors |
| Color | Black |
| Material | Aluminum, Polyester |
| Assortment | Connector Blocks 10K AMP SCCR |
| Package Quantity | 1 |
