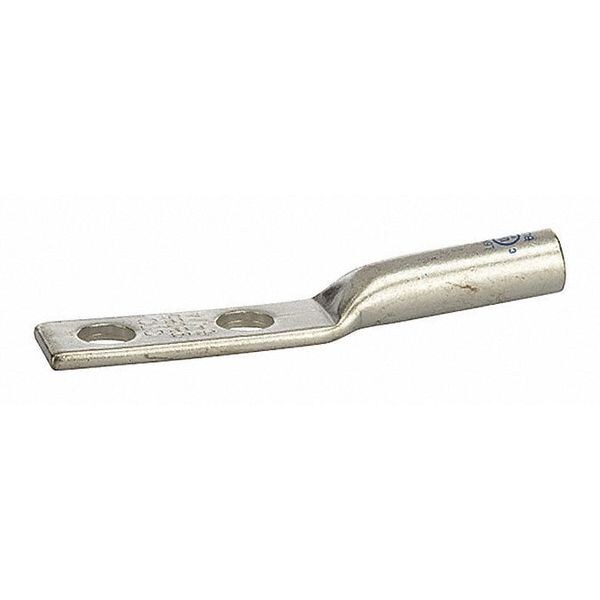

Longitud del conector macho cilíndrico pulido de 6 AWG con perno de 1/4 pulgadas y rosca de 5/8 pulgadas.
| Cable Size | 6 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.42 in |
| Material | Copper |
| Length | 2.36 in |
| Color Code | Blue |
| Item | Two-Hole Compression Lug |
| Barrel Length | 1 |
| Stud Size | 44930 |
| Color | Blue |
| Type | Long Barrel, Barrel - Two Hole |
| Mounting | 0.25 Mounting (Holes) |
| Number of Holes | 2 |
| Voltage Rating | 600 V |
| Standard | UL486 |
| Environmental Conditions | 90 C |
| Size | L=2.36 - W=.420 - OD=.300 - ID=.200 |
| Application | Terminate, Splice, Tap Power Connectors |
| Ul File No | E155027 |
| Ul Standard | UL 486A-486B, UL467 |
| Tang Length | 1.81 |
| Barrel Outside Diameter | 0.3 |
| Barrel Inside Diameter | 0.21 |
| Expanded Wire Range | 6 AWG – 8 AWG |
| Assortment | Copper Compression Terminations |
| Tang Thickness | 0.08 |
| Conductor Type | Copper |
| Wire Cable Class | Class B, Class C |
| Temp Rating | 90C, 9CU |
| Certifications | Listed |
| Mounting Bolt Size | 0.25 |
| Env Temp | 90C, 9CU |
| Finish | Tin Plated |
| Package Quantity | 1 |
