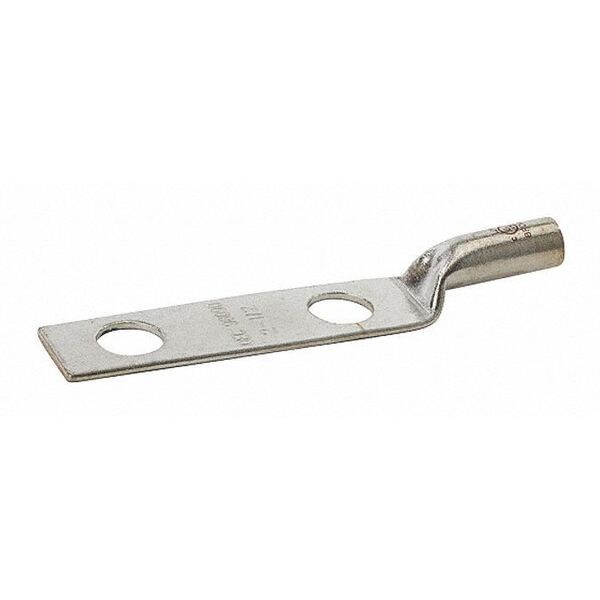

Conector de compresión para cable 2 AWG con espaciador de montaje Nema de longitud larga.
| Cable Size | 2 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.81 in |
| Material | Tin-Plated High Conductivity Copper |
| Length | 4-1/4 in |
| Color Code | Brown |
| Item | Two-Hole Lug Compression Connector |
| Stud Size | 1 to 2 |
| Barrel Length | 1 |
| Color | Brown |
| Application | Terminate, Splice, Tap Power Connectors |
| Type | Long Barrel, Barrel - Two Hole |
| Size | L=4.25 - W=.810 - OD=.420 - ID=.310 |
| Voltage Rating | 600 V |
| Mounting | 0.5 Mounting (Holes) |
| Standard | UL486 |
| Number of Holes | 2 |
| Environmental Conditions | 90 C |
| Wire Cable Class | Class B, Class C |
| Finish | Tin Plated |
| Expanded Wire Range | 2 AWG – 6 AWG |
| Assortment | Copper Compression Terminations |
| Mounting Bolt Size | 0.5 |
| Tang Length | 2.99 |
| Certifications | cULus |
| Ul Standard | UL 486A-486B, UL 467 (8 AWG – 3/0 AWG) |
| Tang Thickness | 0.1 |
| Conductor Type | Copper |
| Ul File No | E155027 |
| Temp Rating | 90C, 9CU |
| Barrel Inside Diameter | 0.32 |
| Barrel Outside Diameter | 0.42 |
| Package Quantity | 1 |
