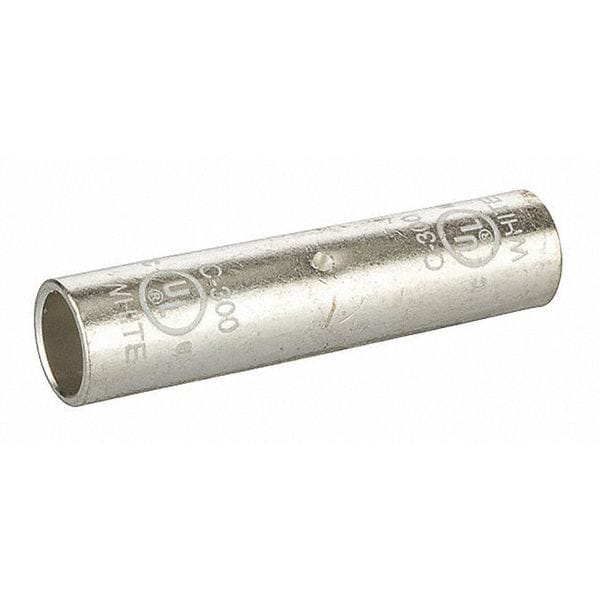

Unión de Empalme Largo de 300 MCM
| Item | Compression Splice Long,300 MCM |
|---|---|
| Wire Range | 300 MCM |
| Material | Copper |
| Color | White |
| Voltage Rating | 600 V |
| Application | Terminate, Splice, Tap Power Connectors |
| Number of Conductors | 2 |
| Standard | UL486 |
| Finish | Tin Plated |
| Size | L=3.50 - OD=.810 - ID=.660 |
| Type | Long Barrel - CU Splice |
| Temperature Rating | 90° C |
| Environmental Conditions | 90 C |
| Conductor Range | 300 MCM (STR) |
| Greenlee Tools | EK, RK, HK1240 Series |
| Conductor Cu Size Range | 250 MCM-6 AWG |
| Cu Conductor Max Amp | 290 |
| Burndy Tools | Y-35, T750, PAT750 |
| Tb Tools | TBM-15, TBM-14M |
| Ilsco Tools | ILC-12, ILC-15 |
| Assortment | Copper Compression Splices |
| Expanded Wire Range | 300 MCM-20 AWG |
| Ul Standard | UL486A, B |
| Max Torque | 360 |
| Nsi Tools | N1240, NSI-12, N12ID, M-250, M-500 |
| Conductor Al Size Range | 250 MCM-6 AWG |
| Temp Rating | 90C, 9CU |
| Wire Cable Class | Class B, Class C |
| Al Conductor Max Amp | 230 |
| Conductor Type | Copper |
| Tb Die | 15,534 |
| Env Temp | 90C, 9CU |
| Ul File No | E155027 |
| Conductors Count | 3 |
| Huskie Tools | EP510C |
| Package Quantity | 1 |
