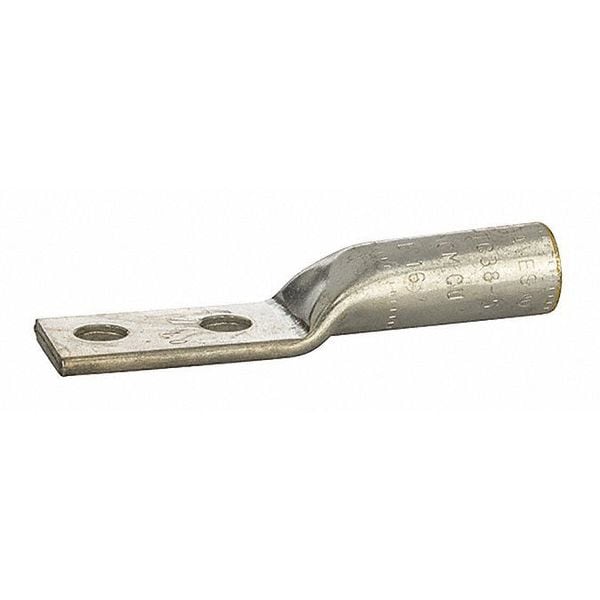

Lug Long 250 Mcm 1 In Mtg Spac se traduce como: Espaciador de montaje para terminal de compresión de 250 MCM de 1 pulgada de longitud.
| Cable Size | 250 MCM |
|---|---|
| Connector Type | Long Barrel |
| Width | 1.09 in |
| Material | Copper |
| Length | 3.78 in |
| Color Code | Yellow |
| Item | Two-Hole Compression Lug |
| Barrel Length | 2 |
| Stud Size | 44993 |
| Color | Yellow |
| Size | L=3.78 - W=1.09 - OD=.750 - ID=.590 |
| Mounting | 0.375 Mounting (Holes) |
| Application | Terminate, Splice, Tap Power Connectors |
| Standard | UL486 |
| Number of Holes | 2 |
| Environmental Conditions | 90 C |
| Voltage Rating | 600 V |
| Type | Long Barrel, Barrel - Two Hole |
| Cu Conductor Max Amp | 290 |
| Env Temp | 90C, 9CU |
| Conductors Count | 3 |
| Ilsco Tools | ILC-12, ILC-15 |
| Finish | Tin Plated |
| Barrel Outside Diameter | 0.75 |
| Ul File No | E155027 |
| Max Torque | 360 |
| Tb Die | 15,510 |
| Tang Length | 1.81 |
| Ul Standard | UL 486A-486B, UL 467 (8 AWG – 3/0 AWG) |
| Conductor Cu Size Range | 250 MCM-6 AWG |
| Temp Rating | 90C, 9CU |
| Huskie Tools | EP510C |
| Certifications | cULus |
| Mounting Bolt Size | 0.375 |
| Conductor Al Size Range | 250 MCM-6 AWG |
| Al Conductor Max Amp | 230 |
| Greenlee Tools | EK, RK, HK1240 Series |
| Burndy Tools | Y-35, T750, PAT750 |
| Barrel Inside Diameter | 0.59 |
| Assortment | Copper Compression Terminations |
| Wire Cable Class | Class B, Class C |
| Expanded Wire Range | 250 MCM – 1/0 AWG |
| Nsi Tools | N1240, NSI-12, N12ID, M-250, M-500 |
| Conductor Type | Copper |
| Tb Tools | TBM-15, TBM-14M |
| Tang Thickness | 0.15 |
| Package Quantity | 1 |
