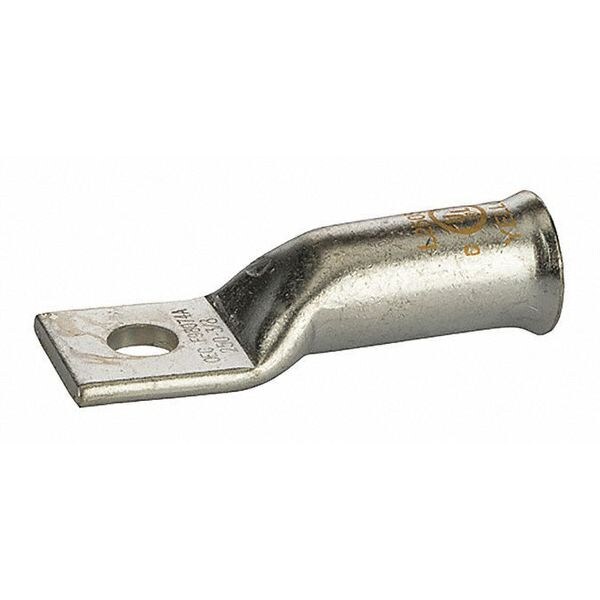

Lug Long 250 Mcm 3/8 Tornillo-Bell
| Cable Size | 250 MCM |
|---|---|
| Connector Type | Long Barrel |
| Width | 1.09 in |
| Material | Tin-Plated Copper |
| Length | 3.03 in |
| Color Code | Yellow |
| Item | One-Hole Lug Compression Connector |
| Stud Size | 44993 |
| Color | Yellow |
| Number of Holes | 1 |
| Standard | UL486 |
| Type | Long Barrel, Barrel - One Hole - Belled End |
| Mounting | 3/8 Mounting Hole |
| Size | L=3.03 - W=1.09 - OD=.752 - ID=.594 |
| Environmental Conditions | 90 C |
| Voltage Rating | 600 V |
| Application | Terminate, Splice, Tap Power Connectors |
| Conductor Type | Copper |
| Tb Die | 15,510 |
| Expanded Wire Range | 250 MCM-1/0 AWG |
| Temp Rating | 90C, 9CU |
| Wire Cable Class | Class B, Class C |
| Finish | Tin Plated |
| Tb Tools | TBM-15, TBM-14M |
| Ilsco Tools | ILC-12, ILC-15 |
| Env Temp | 90C, 9CU |
| Nsi Tools | N1240, NSI-12, N12ID, M-250, M-500 |
| Ul File No | E155027 |
| Cu Conductor Max Amp | 290 |
| Assortment | Copper Compression Terminations |
| Huskie Tools | EP510C |
| Conductors Count | 3 |
| Ul Standard | UL486A/B |
| Max Torque | 360 |
| Conductor Cu Size Range | 250 MCM-6 AWG |
| Conductor Al Size Range | 250 MCM-6 AWG |
| Greenlee Tools | EK, RK, HK1240 Series |
| Burndy Tools | Y-35, T750, PAT750 |
| Al Conductor Max Amp | 230 |
| Package Quantity | 1 |
