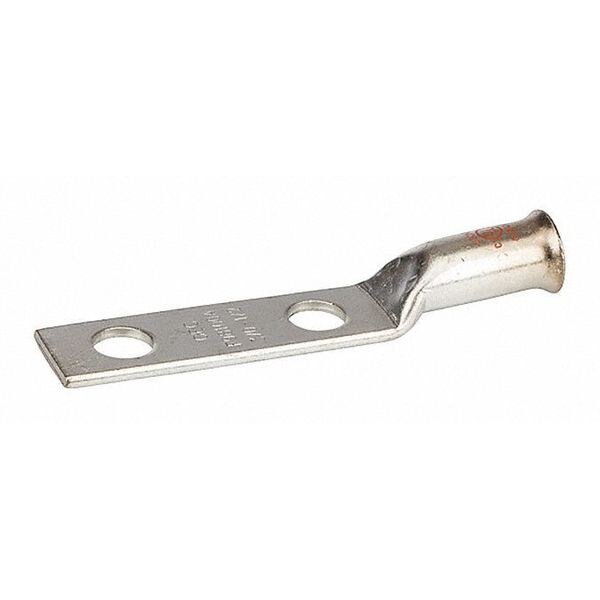

Lug Long 3/0 Awg Nema Mtg-Bell se traduce como "Terminal Largo 3/0 AWG NEMA MTG-Bell".
| Cable Size | 3/0 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.9 in |
| Material | Tin-Plated Copper |
| Length | 4.65 in |
| Color Code | Orange |
| Item | Two-Hole Lug Compression Connector |
| Barrel Length | 5 |
| Stud Size | 1 to 2 |
| Color | Orange |
| Number of Holes | 2 |
| Size | L=4.65 - W=.900 - OD=.620 - ID=.490 |
| Type | Long Barrel |
| Voltage Rating | 600 V |
| Standard | UL486 |
| Environmental Conditions | 90 C |
| Application | Terminate, Splice, Tap Power Connectors |
| Mounting | 0.5 Mounting (Holes) |
| Conductor Cu Size Range | 250 MCM-6 AWG |
| Certifications | cULus |
| Tang Length | 2.99 |
| Ul Standard | UL 486A-486B, UL 467 (8 AWG – 3/0 AWG) |
| Barrel Outside Diameter | 0.62 |
| Barrel Inside Diameter | 0.49 |
| Max Torque | 360 |
| Tang Thickness | 0.13 |
| Ul File No | E155027 |
| Burndy Tools | Y-35, T750, PAT750 |
| Wire Cable Class | Class B, Class C |
| Tb Die | 15,530 |
| Greenlee Tools | EK, RK, HK1240 Series |
| Expanded Wire Range | 3/0 AWG – 2 AWG |
| Mounting Bolt Size | 0.5 |
| Nsi Tools | N1240, NSI-12, N12ID, M-250, M-500 |
| Cu Conductor Max Amp | 290 |
| Conductor Type | Copper |
| Conductor Al Size Range | 250 MCM-6 AWG |
| Env Temp | 90C, 9CU |
| Assortment | Copper Compression Terminations |
| Finish | Tin Plated |
| Tb Tools | TBM-15, TBM-14M |
| Conductors Count | 3 |
| Huskie Tools | EP510C |
| Al Conductor Max Amp | 230 |
| Temp Rating | 90C, 9CU |
| Ilsco Tools | ILC-12, ILC-15 |
| Package Quantity | 1 |
