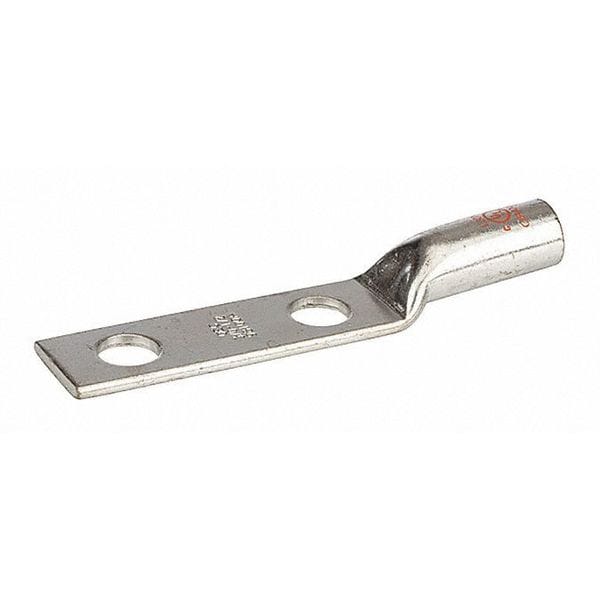

Lug Long 3/0 Awg Nema Mtg Spac se traduce al español como: Terminal largo 3/0 AWG con espacio de montaje NEMA.
| Cable Size | 3/0 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.9 in |
| Material | Copper |
| Length | 4.65 in |
| Color Code | Orange |
| Item | Two-Hole Compression Lug |
| Stud Size | 1 to 2 |
| Barrel Length | 1 |
| Color | Orange |
| Number of Holes | 2 |
| Size | L=4.65 - W=.900 - OD=.620 - ID=.490 |
| Standard | UL486 |
| Type | Long Barrel, Barrel - Two Hole |
| Voltage Rating | 600 V |
| Application | Terminate, Splice, Tap Power Connectors |
| Mounting | 0.5 Mounting (Holes) |
| Environmental Conditions | 90 C |
| Mounting Bolt Size | 0.5 |
| Conductor Type | Copper |
| Env Temp | 90 C |
| Finish | Tin Plated |
| Expanded Wire Range | 3/0 AWG – 2 AWG |
| Tang Thickness | 0.13 |
| Certifications | cULus |
| Wire Cable Class | Class B, Class C |
| Assortment | Copper Compression Terminations |
| Ul Standard | UL 486A-486B, UL 467 (8 AWG – 3/0 AWG) |
| Temp Rating | 90C, 9CU |
| Barrel Inside Diameter | 0.49 |
| Ul File No | E155027 |
| Barrel Outside Diameter | 0.62 |
| Tang Length | 2.99 |
| Package Quantity | 1 |
