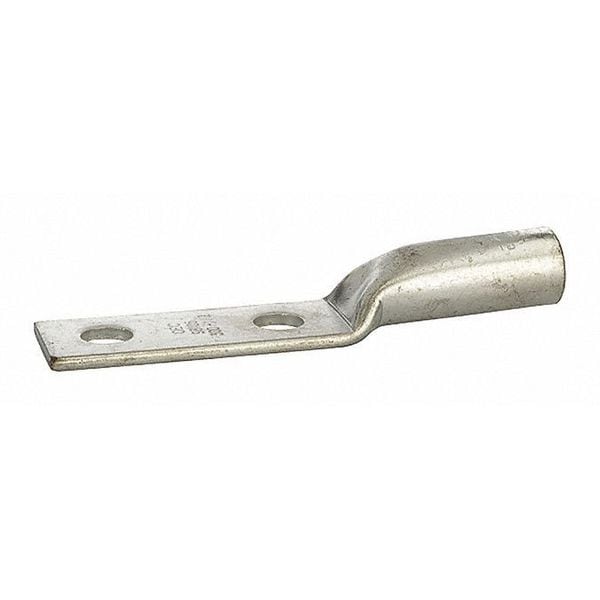

Lug Long 300 Mcm Nema Mtg Spac se traduciría como: Espaciador de montaje NEMA de 300 MCM de Lug largo.
| Cable Size | 300 MCM |
|---|---|
| Connector Type | Long Barrel |
| Width | 1.19 in |
| Material | Copper |
| Length | 5.31 in |
| Color Code | White |
| Item | Two-Hole Compression Lug |
| Barrel Length | 2 |
| Stud Size | 1 to 2 |
| Color | White |
| Environmental Conditions | 90 C |
| Number of Holes | 2 |
| Mounting | 0.5 Mounting (Holes) |
| Voltage Rating | 600 V |
| Application | Terminate, Splice, Tap Power Connectors |
| Size | L=5.31 - W=1.19 - OD=.815 - ID=.657 |
| Type | Long Barrel, Barrel - Two Hole |
| Standard | UL486 |
| Barrel Inside Diameter | 0.66 |
| Tang Thickness | 0.15 |
| Wire Cable Class | Class B, Class C |
| Ul Standard | UL 486A-486B, UL 467 (8 AWG – 3/0 AWG) |
| Certifications | cULus |
| Finish | Tin Plated |
| Temp Rating | 90C, 9CU |
| Barrel Outside Diameter | 0.82 |
| Conductor Type | Copper |
| Tang Length | 2.99 |
| Mounting Bolt Size | 0.5 |
| Expanded Wire Range | 300 MCM – 2/0 AWG |
| Assortment | Copper Compression Terminations |
| Ul File No | E155027 |
| Package Quantity | 1 |
