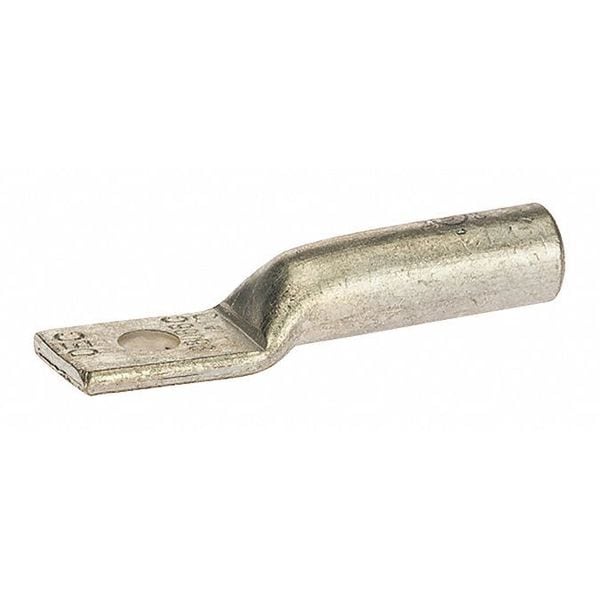

Lug Long 4 AWG, tamaño de perno 10
| Cable Size | 4 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.488 in |
| Material | Tin-Plated High Conductivity Copper |
| Length | 1.77 in |
| Color Code | Gray |
| Item | One-Hole Lug Compression Connector |
| Barrel Length | 1 |
| Stud Size | # 10 |
| Color | Gray |
| Mounting | # 10 Mounting Hole |
| Environmental Conditions | 90 C |
| Application | Terminate, Splice, Tap Power Connectors |
| Type | Long Barrel, Barrel - One Hole |
| Size | L=1.77 - W=.490 - OD=.340 - ID=.250 |
| Number of Holes | 1 |
| Standard | UL486 |
| Voltage Rating | 600 V |
| Expanded Wire Range | 4 AWG – 6 AWG |
| Ul Standard | UL 486A-486B, UL 467 (8 AWG – 3/0 AWG) |
| Assortment | Copper Compression Terminations |
| Barrel Inside Diameter | 0.25 |
| Tb Tools | TBM-15, TBM-14M |
| Tb Die | 15,527 |
| Greenlee Tools | EK, RK, HK1240 Series |
| Burndy Tools | Y-35, T750, PAT750 |
| Barrel Outside Diameter | 0.34 |
| Tang Length | 0.67 |
| Mounting Bolt Size | 10 |
| Conductor Type | Copper |
| Cu Conductor Max Amp | 290 |
| Nsi Tools | N1240, NSI-12, N12ID, M-250, M-500 |
| Temp Rating | 90C, 9CU |
| Max Torque | 360 |
| Wire Cable Class | Class B, Class C |
| Env Temp | 90C, 9CU |
| Certifications | cULus |
| Ilsco Tools | ILC-12, ILC-15 |
| Conductors Count | 3 |
| Ul File No | E155027 |
| Tang Thickness | 0.09 |
| Conductor Cu Size Range | 250 MCM-6 AWG |
| Al Conductor Max Amp | 230 |
| Conductor Al Size Range | 250 MCM-6 AWG |
| Huskie Tools | EP510C |
| Finish | Tin Plated |
| Package Quantity | 1 |
