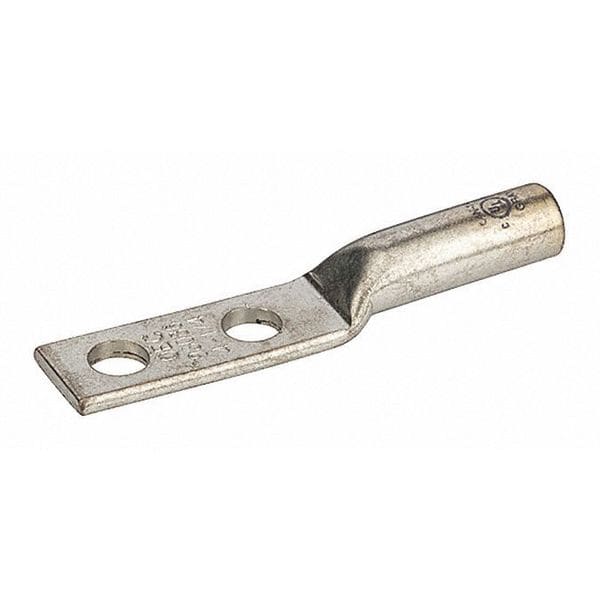

Lug Long es un conector de terminal para cable calibre 4 con un perno de 1/4 pulgadas y 5/8 pulgadas de espacio.
| Cable Size | 4 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.49 in |
| Material | Tin-Plated High Conductivity Copper |
| Length | 2.36 in |
| Color Code | Gray |
| Item | Two-Hole Lug Compression Connector |
| Barrel Length | 1 |
| Stud Size | 44930 |
| Color | Gray |
| Size | L=2.36 - W=.490 - OD=.340 - ID=.250 |
| Type | Long Barrel, Barrel - Two Hole |
| Mounting | 0.25 Mounting (Holes) |
| Standard | UL486 |
| Number of Holes | 2 |
| Application | Terminate, Splice, Tap Power Connectors |
| Voltage Rating | 600 V |
| Environmental Conditions | 90 C |
| Barrel Outside Diameter | 0.34 |
| Tang Thickness | 0.09 |
| Assortment | Copper Compression Terminations |
| Tang Length | 1.81 |
| Wire Cable Class | Class B, Class C |
| Conductor Type | Copper |
| Mounting Bolt Size | 0.25 |
| Barrel Inside Diameter | 0.25 |
| Certifications | cULus |
| Ul Standard | UL 486A-486B, UL 467 (8 AWG – 3/0 AWG) |
| Ul File No | E155027 |
| Finish | Tin Plated |
| Temp Rating | 90C, 9CU |
| Expanded Wire Range | 4 AWG – 6 AWG |
| Package Quantity | 1 |
