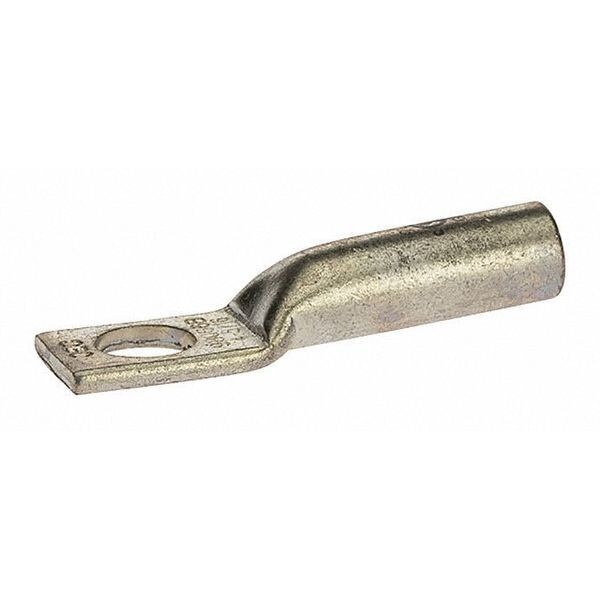

Lug Long 4 Awg Tamaño de perno de 5/16 pulgadas.
| Cable Size | 4 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.488 in |
| Material | Tin-Plated High Conductivity Copper |
| Length | 1.772 in |
| Color Code | Gray |
| Item | One-Hole Lug Compression Connector |
| Stud Size | 45062 |
| Barrel Length | 1 |
| Color | Gray |
| Type | Long Barrel, Barrel - One Hole |
| Standard | UL486 |
| Application | Terminate, Splice, Tap Power Connectors |
| Number of Holes | 1 |
| Voltage Rating | 600 V |
| Mounting | 5/16 Mounting Hole |
| Environmental Conditions | 90 C |
| Size | L=1.77 - W=.490 - OD=.340 - ID=.250 |
| Ul Standard | UL 486A-486B, UL 467 (8 AWG – 3/0 AWG) |
| Tang Length | 0.67 |
| Barrel Outside Diameter | 0.34 |
| Temp Rating | 90C, 9CU |
| Tang Thickness | 0.09 |
| Mounting Bolt Size | 0.3125 |
| Certifications | cULus |
| Finish | Tin Plated |
| Assortment | Copper Compression Terminations |
| Wire Cable Class | Class B, Class C |
| Ul File No | E155027 |
| Barrel Inside Diameter | 0.25 |
| Conductor Type | Copper |
| Expanded Wire Range | 4 AWG – 6 AWG |
| Package Quantity | 1 |
