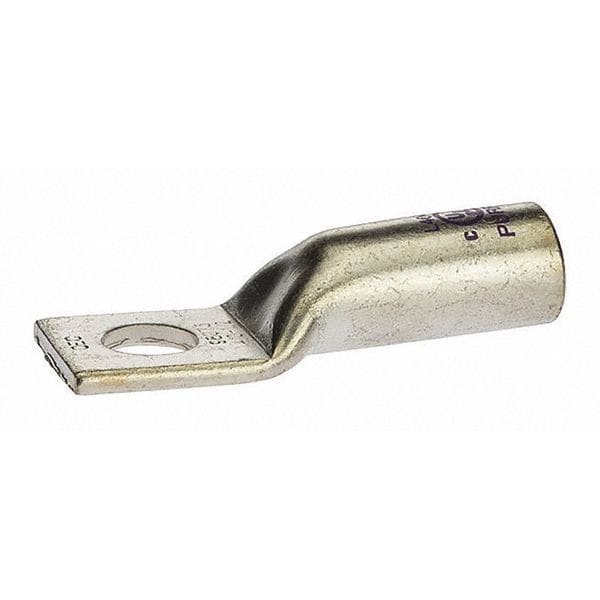

Long Lug 4/0 Awg tamaño de perno 1/2
| Cable Size | 4/0 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 1 in |
| Material | Tin-Plated High Conductivity Copper |
| Length | 2.795 in |
| Color Code | Purple |
| Item | One-Hole Lug Compression Connector |
| Stud Size | 1 to 2 |
| Barrel Length | 1 |
| Color | Purple |
| Standard | UL486 |
| Environmental Conditions | 90 C |
| Voltage Rating | 600 V |
| Type | Long Barrel, Barrel - One Hole |
| Size | L=2.79 - W=1.00 - OD=.689 - ID=.547 |
| Application | Terminate, Splice, Tap Power Connectors |
| Number of Holes | 1 |
| Mounting | 1/2 Mounting Hole |
| Tang Length | 1.06 |
| Conductor Type | Copper |
| Temp Rating | 90C, 9CU |
| Expanded Wire Range | 4/0 AWG – 1 AWG |
| Barrel Inside Diameter | 0.55 |
| Barrel Outside Diameter | 0.69 |
| Ul Standard | UL 486A-486B, UL 467 (8 AWG – 3/0 AWG) |
| Tang Thickness | 0.13 |
| Wire Cable Class | Class B, Class C |
| Mounting Bolt Size | 0.5 |
| Certifications | cULus |
| Finish | Tin Plated |
| Assortment | Copper Compression Terminations |
| Ul File No | E155027 |
| Package Quantity | 1 |
