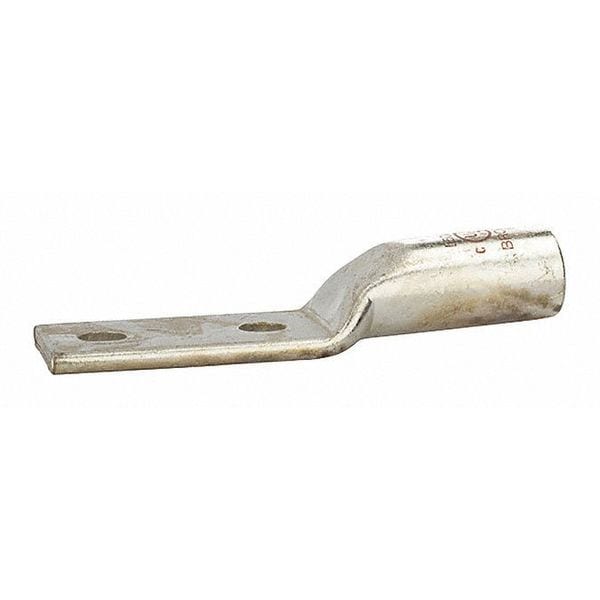

Lug Long 500 Mcm Nema Mtg Spac = Espacio para montaje Nema de 500 MCM de lug largo.
| Cable Size | 500 MCM |
|---|---|
| Connector Type | Long Barrel |
| Width | 1.54 in |
| Material | Copper |
| Length | 5-3/4 in |
| Color Code | Brown |
| Item | Two-Hole Compression Lug |
| Stud Size | 1 to 2 |
| Barrel Length | 2 |
| Color | Brown |
| Standard | UL486 |
| Environmental Conditions | 90 C |
| Voltage Rating | 600 V |
| Application | Terminate, Splice, Tap Power Connectors |
| Size | L=5.75 - W=1.54 - OD=1.06 - ID=.840 |
| Mounting | 1/2 Mountng Holes |
| Number of Holes | 2 |
| Type | Long Barrel, Barrel - Two Hole |
| Expanded Wire Range | 500 MCM – 250 MCM |
| Finish | Tin Plated |
| Tang Length | 2.99 |
| Conductor Type | Copper |
| Mounting Bolt Size | 0.5 |
| Temp Rating | 90C, 9CU |
| Ul Standard | UL 486A-486B, UL 467 (8 AWG – 3/0 AWG) |
| Barrel Inside Diameter | 0.84 |
| Wire Cable Class | Class B, Class C |
| Assortment | Copper Compression Terminations |
| Certifications | cULus |
| Tang Thickness | 0.22 |
| Barrel Outside Diameter | 1.06 |
| Ul File No | E155027 |
| Package Quantity | 1 |
