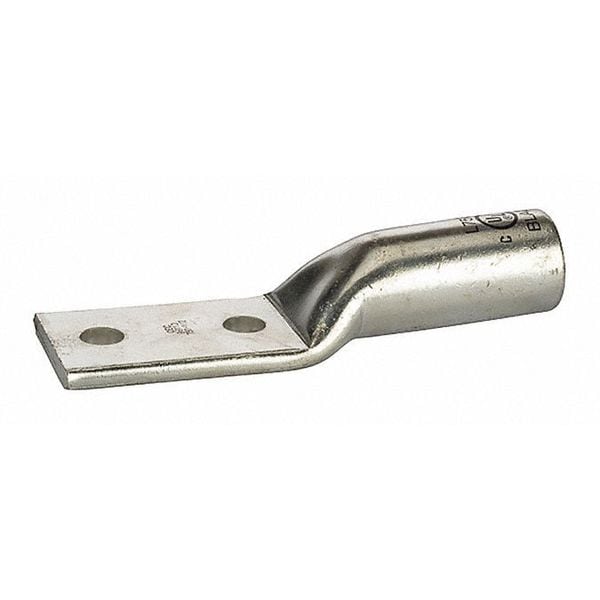

Lug Long 750 Mcm Nema Mtg-Bell se traduce como: Abrazadera larga para cable de 750 Mcm con montaje Nema y campana.
| Cable Size | 750 MCM |
|---|---|
| Connector Type | Long Barrel |
| Width | 1.9 in |
| Material | Tin-Plated Copper |
| Length | 6.3 in |
| Color Code | Black |
| Item | Two-Hole Lug Compression Connector |
| Stud Size | 1 to 2 |
| Barrel Length | 6 |
| Color | Black |
| Voltage Rating | 600 V |
| Size | L=6.30 - W=1.90 - OD=1.31 - ID=1.04 |
| Number of Holes | 2 |
| Mounting | 0.5 Mounting (Holes) |
| Standard | UL486 |
| Environmental Conditions | 90 C |
| Application | Terminate, Splice, Tap Power Connectors |
| Type | Long Barrel |
| Expanded Wire Range | 750 MCM – 500 MCM |
| Temp Rating | 90C, 9CU |
| Certifications | cULus |
| Conductor Type | Copper |
| Ul Standard | UL 486A-486B, UL 467 (8 AWG – 3/0 AWG) |
| Tang Length | 2.99 |
| Mounting Bolt Size | 0.5 |
| Barrel Outside Diameter | 1.31 |
| Barrel Inside Diameter | 1.04 |
| Wire Cable Class | Class B, Class C |
| Tang Thickness | 0.27 |
| Assortment | Copper Compression Terminations |
| Finish | Tin Plated |
| Ul File No | E155027 |
| Package Quantity | 1 |
