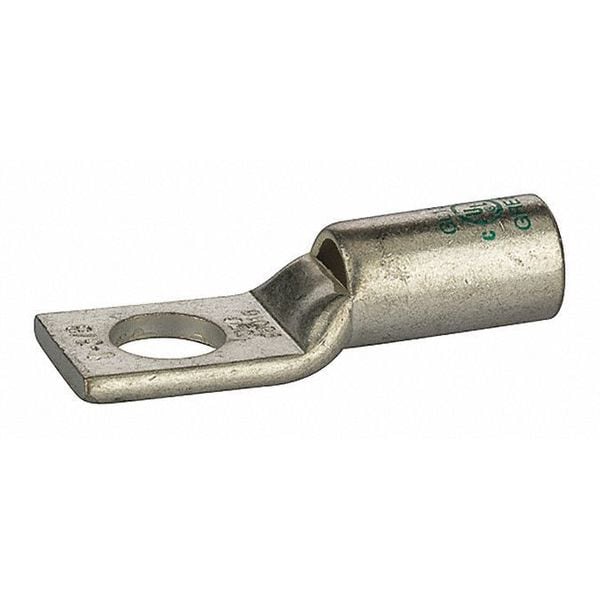

Terminal corto de 1 AWG con un tamaño de perno de 5/16 pulgadas.
| Cable Size | 1 AWG |
|---|---|
| Connector Type | Short Barrel with Peep Hole |
| Width | 0.673 in |
| Material | Tin-Plated High Conductivity Copper |
| Length | 1.835 in |
| Color Code | Green |
| Item | One-Hole Lug Compression Connector |
| Stud Size | 45062 |
| Barrel Length | 1 |
| Color | Green |
| Number of Holes | 1 |
| Application | Terminate, Splice, Tap Power Connectors |
| Standard | UL486 |
| Mounting | 5/16 Mounting Hole |
| Environmental Conditions | 90 C |
| Voltage Rating | 600 V |
| Type | Barrel - One Hole, Short Barrel |
| Size | L=1.83 - W=.670 - OD=.470 - ID=.360 |
| Expanded Wire Range | 1 AWG – 6 AWG |
| Tang Length | 0.81 |
| Certifications | cULus |
| Tang Thickness | 0.11 |
| Barrel Outside Diameter | 0.47 |
| Mounting Bolt Size | 0.3125 |
| Conductor Type | Copper |
| Barrel Inside Diameter | 0.36 |
| Assortment | Copper Compression Terminations |
| Temp Rating | 90C, 9CU |
| Wire Cable Class | Class B, Class C |
| Ul File No | E155027 |
| Ul Standard | UL 486A-486B, UL 467 (8 AWG – 3/0 AWG) |
| Finish | Tin Plated |
| Package Quantity | 1 |
