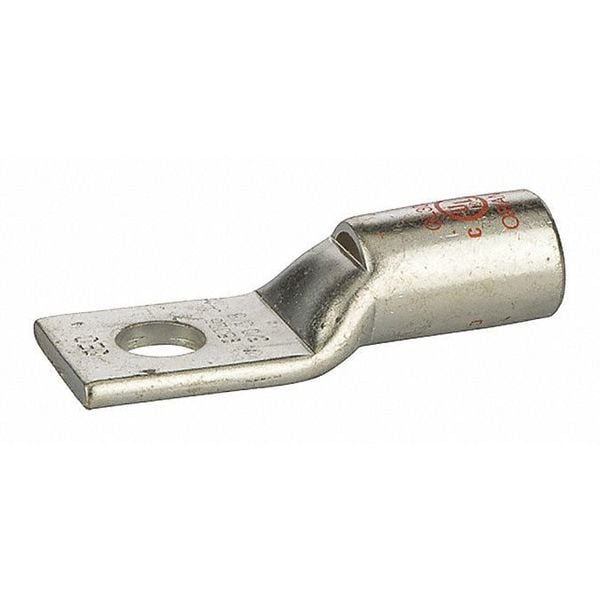

Terminal corto de 3/0 AWG con tamaño de perno de 3/8 pulgadas.
| Cable Size | 3/0 AWG |
|---|---|
| Connector Type | Short Barrel with Peep Hole |
| Width | 0.902 in |
| Material | Tin-Plated High Conductivity Copper |
| Length | 2.362 in |
| Color Code | Orange |
| Item | One-Hole Lug Compression Connector |
| Stud Size | 44993 |
| Barrel Length | 1 |
| Color | Orange |
| Voltage Rating | 600 V |
| Number of Holes | 1 |
| Application | Terminate, Splice, Tap Power Connectors |
| Size | L=2.36 - W=.900 - OD=.620 - ID=.490 |
| Type | Barrel - One Hole, Short Barrel |
| Environmental Conditions | 90 C |
| Mounting | 3/8 Mounting Hole |
| Standard | UL486 |
| Temp Rating | 90C, 9CU |
| Finish | Tin Plated |
| Tang Thickness | 0.13 |
| Wire Cable Class | Class B, Class C |
| Ul File No | E155027 |
| Certifications | cULus |
| Expanded Wire Range | 3/0 AWG – 2 AWG |
| Barrel Outside Diameter | 0.62 |
| Assortment | Copper Compression Terminations |
| Conductor Type | Copper |
| Mounting Bolt Size | 0.375 |
| Tang Length | 1.06 |
| Barrel Inside Diameter | 0.49 |
| Ul Standard | UL 486A-486B, UL 467 (8 AWG – 3/0 AWG) |
| Package Quantity | 1 |
