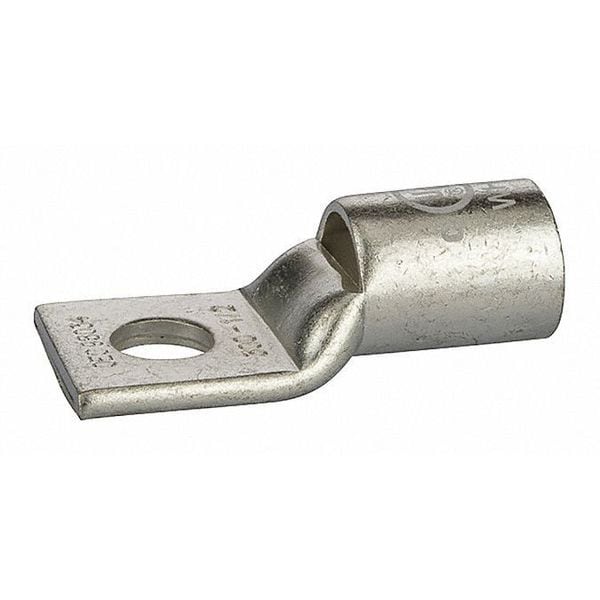

Tuerca corta de 300 Mcm con tamaño de perno de 1/2 pulgada.
| Cable Size | 300 MCM |
|---|---|
| Connector Type | Short Barrel with Peep Hole |
| Width | 1.189 in |
| Material | Tin-Plated High Conductivity Copper |
| Length | 2.48 in |
| Color Code | White |
| Item | One-Hole Lug Compression Connector |
| Barrel Length | 1 |
| Stud Size | 1 to 2 |
| Color | White |
| Mounting | 1/2 Mounting Hole |
| Environmental Conditions | 90 C |
| Number of Holes | 1 |
| Type | Barrel - One Hole, Short Barrel |
| Standard | UL486 |
| Application | Terminate, Splice, Tap Power Connectors |
| Voltage Rating | 600 V |
| Size | L=2.48 - W=1.19 - OD=.810 - ID=.660 |
| Tang Thickness | 0.15 |
| Assortment | Copper Compression Terminations |
| Conductor Type | Copper |
| Ul Standard | UL 486A-486B, UL 467 (8 AWG – 3/0 AWG) |
| Expanded Wire Range | 300 MCM – 2/0 AWG |
| Temp Rating | 90C, 9CU |
| Barrel Outside Diameter | 0.82 |
| Ul File No | E155027 |
| Barrel Inside Diameter | 0.66 |
| Tang Length | 1.06 |
| Certifications | cULus |
| Mounting Bolt Size | 0.5 |
| Wire Cable Class | Class B, Class C |
| Finish | Tin Plated |
| Package Quantity | 1 |
