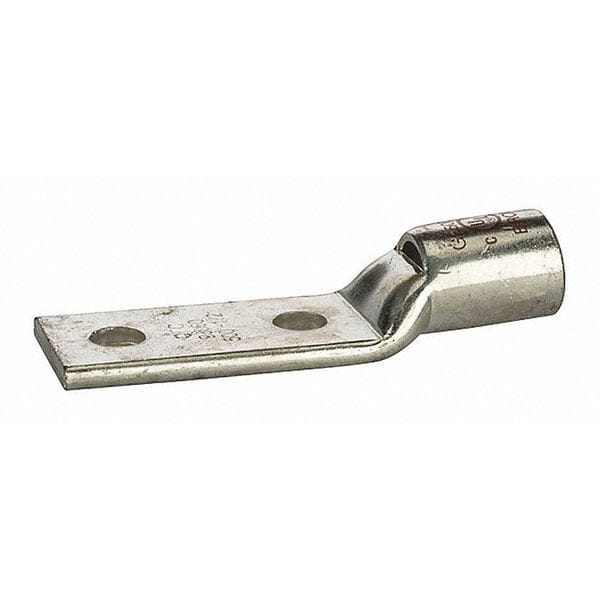

Soporte de montaje NEMA para cable de 500 MCM corto.
| Cable Size | 500 MCM |
|---|---|
| Connector Type | Short Barrel with Peep Hole |
| Width | 1.539 in |
| Material | Tin-Plated High Conductivity Copper |
| Length | 4.882 in |
| Color Code | Brown |
| Item | Two-Hole Lug Compression Connector |
| Barrel Length | 1 |
| Stud Size | 1 to 2 |
| Color | Brown |
| Size | L=4.88 - W=1.54 - OD=1.06 - ID=.840 |
| Type | Barrel - Two Hole, Short Barrel |
| Environmental Conditions | 90 C |
| Number of Holes | 2 |
| Mounting | 0.5 Mounting (Holes) |
| Voltage Rating | 600 V |
| Standard | UL486 |
| Application | Terminate, Splice, Tap Power Connectors |
| Assortment | Copper Compression Terminations |
| Finish | Tin Plated |
| Expanded Wire Range | 500 MCM – 250 MCM |
| Ul File No | E155027 |
| Wire Cable Class | Class B, Class C |
| Ul Standard | UL 486A-486B, UL 467 (8 AWG – 3/0 AWG) |
| Tang Thickness | 0.22 |
| Temp Rating | 90C, 9CU |
| Tang Length | 2.99 |
| Barrel Inside Diameter | 0.84 |
| Certifications | cULus |
| Barrel Outside Diameter | 1.06 |
| Mounting Bolt Size | 0.5 |
| Conductor Type | Copper |
| Package Quantity | 1 |
