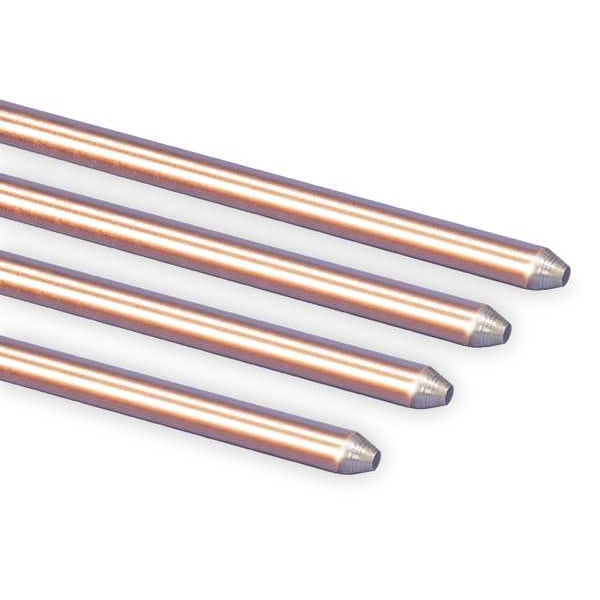

Ground Rod, Dia. 1/2 In, 8 Ft.
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Pointed End Ground Rod |
| Diameter | 1/2 in |
| Length | 8 ft |
| Material | Steel |
| Standards | IEC EN 62561-2, UL 467 |
| Features | 10 mil Copper Coating, 30-yr Service Life |
| Description/Special Features | 10 mil Copper Coating, 30-yr. Service Life |
| Length (Straight Wireway) | 8 ft |
| Overall Width | 1/2 in |
| Pointed | Yes |
| Weight | 5.5 lb |
| Overall Length | 8 ft |
| Height | 12.85 millimetre |
| Width | 12.85 millimetre |
| Plating Thickness | 254 |
| Ground Rod Diameter, Actual (Ø) | 12.8 to 12.8 |
| Length (L) (metre) | 2.4 to 2.4 |
| Tensile Strength (megapascal) | 552 |
| Complies With | ANSI®/NEMA® GR1 |
| Tensile Strength | 80000 |
| Length (L) | 8 to 8 |
| Ground Rod Diameter, Nominal | 0.5 to 0.5 |
| Ground Rod Diameter, Actual (Ø) | 12.8 to 12.8 |
| Package Quantity | 1 |
