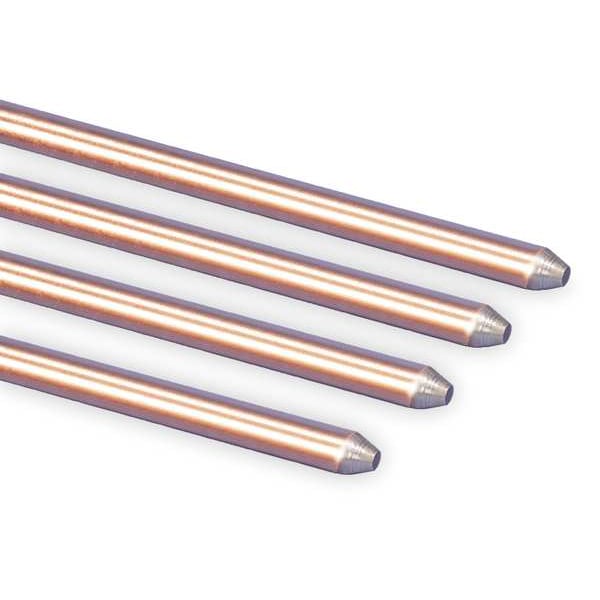

Pointed End Ground Rod, 5/8 in Dia, 8 ft L, Copper Bonded Steel
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Pointed End Ground Rod |
| Diameter | 5/8 in |
| Length | 8 ft |
| Material | Steel |
| Standards | IEC EN 62561-2, UL 467 |
| Features | 10 mil Copper Coating, 30-yr Service Life |
| Description/Special Features | 10 mil Copper Coating, 30-yr. Service Life |
| Length (Straight Wireway) | 8 ft |
| Pointed | Yes |
| Weight | 6.8 lb |
| Overall Length | 8 ft |
| Overall Width | 5/8 in |
| Width | 14.30 millimetre |
| Height | 14.30 millimetre |
| Ground Rod Diameter, Nominal | 0.62 to 0.62 |
| Plating Thickness | 254 |
| Ground Rod Diameter, Actual (Ø) | 14.2 to 14.2 |
| Tensile Strength | 80000 |
| Tensile Strength (megapascal) | 552 |
| Complies With | IEC® EN 62561-2 |
| Length (L) (metre) | 2.4 to 2.4 |
| Length (L) | 8 to 8 |
| Ground Rod Diameter, Actual (Ø) | 14.2 to 14.2 |
| Package Quantity | 1 |
