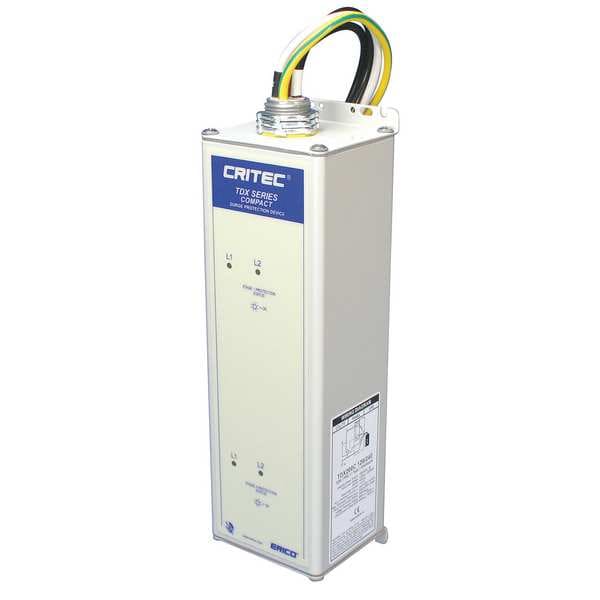

Surge Protection Device, 3 Phase, 120/208V, 4 Poles, 4 Wires + Ground
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Chase Nipple/Panel |
| Phase | 3 |
| Voltage | 120/208V |
| Number of Poles | 4 |
| Voltage Protection Rating | 1000V (L-L), 600V (L-G, L-N, N-G) |
| Number of Wires | 4 Wires + Ground |
| Modes of Protection | L-G, L-N, N-G, L-L |
| Max. Surge Current per Mode | 200 kA |
| Max. Surge Current per Phase | 200 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Modular | Yes |
| Filtering | No |
| Max. Continuing Operating Voltage | 170/276V AC |
| Enclosure NEMA Rating | NEMA 4 |
| IP Rating | IP65 |
| Enclosure Material | Metal |
| Length | 11 in |
| Depth | 3.07 in |
| Width | 3.31 in |
| Wire Gauge | 10 AWG |
| Includes | Voltage Free Contact |
| Lightning Impulse Current | 25 kA |
| Standards | ANSI/IEEE, C-Tick, CE, IEC 61643-1, UL 1449 Edition 3 Type 1/2 |
| Modular / Nonmodular | Modular |
| System Connection | Parallel |
| UL SPD Type | Type 1/2 |
| Max. Operating Temp. | 176 deg F |
| Min. Operating Temp. | -40 deg F |
| Color | Gray |
| Chase Nipple Size | 3/4 in |
| Amps | 200,000 |
| Mounting | 3/4€ straight nipple |
| Includes Surge Counter | No |
| Status Indicator | LED Light |
| Status Indication | LED |
| Max Discharge Current (Imax), Per Phase | 200 |
| Technology | Over-current fusing |
| Lead Length | 762 |
| Complies With | ANSI®/IEEE® C62.41.2-2002 Cat A, Cat B, Cat C |
| Certification Details | UL® 1449 Edition 5 Type 1/2, 20 kA Mode |
| Impulse Current (Iimp), Per Mode | 25 |
| Stand-off Voltage | 240/415 V |
| Nominal Discharge Current (In), IEC | 40 |
| Ground Lead Length | 914 |
| Frequency | 50-60.00 |
| Lead Size | 5.26-5.26 |
| Nominal Discharge Current (In), UL | 20 |
| Max Continuous Operating Voltage (Uc) | 170/276 VAC |
| Voltage Protection Rating (VPR), L-N | 800 V @ 3 kA |
| Remote Contacts | Yes |
| Temperature | -120 |
| Package Quantity | 1 |
