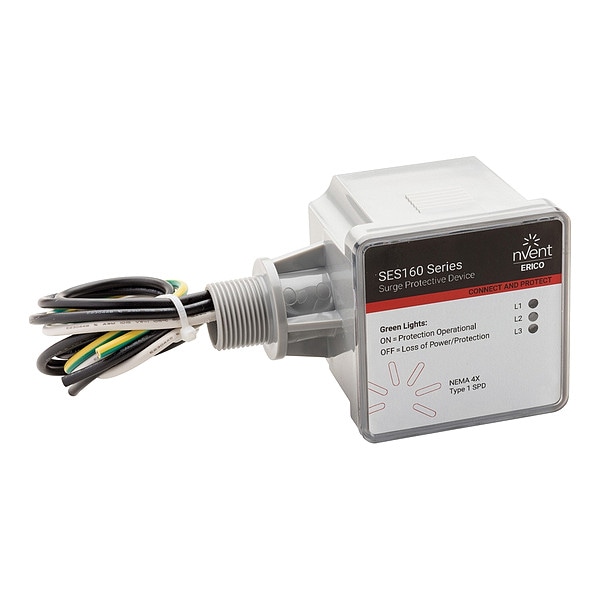

Surge Protection Device, 3 Phase, 240V, 3 Poles, 3 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Panel |
| Phase | 3 |
| Voltage | 240 V |
| Number of Poles | 3 |
| Voltage Protection Rating | 1000V (L-PE), 1200V (L-L) |
| Number of Wires | 3 Wires |
| Modes of Protection | L-N, L-L, L-PE, N-PE |
| Max. Surge Current per Mode | 160 kA |
| Max. Surge Current per Phase | 160 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Max. Continuing Operating Voltage | 275V |
| Enclosure NEMA Rating | NEMA 4X |
| Enclosure Material | Polycarbonate |
| Length | 4.2 in |
| Depth | 2.93 in |
| Width | 3-1/4 in |
| Standards | ANSI/IEEE C62.41.1-2002 Cat A, Cat B, Cat C, ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C, ANSI/IEEE C62.45-2002 Cat A, Cat B, Cat C, CSA C22.2 No. 269.1, UL 1449 Edition 5 |
| Status Indicator | Audible Alarm, LED Light |
| Min. Operating Temp. | -40 deg F |
| Chase Nipple Size | 3/4 in |
| Amps | 160,000 |
| UL SPD Type | Type 1 |
| System Connection | Parallel |
| Max. Operating Temp. | 185 deg F |
| Package Quantity | 1 |
