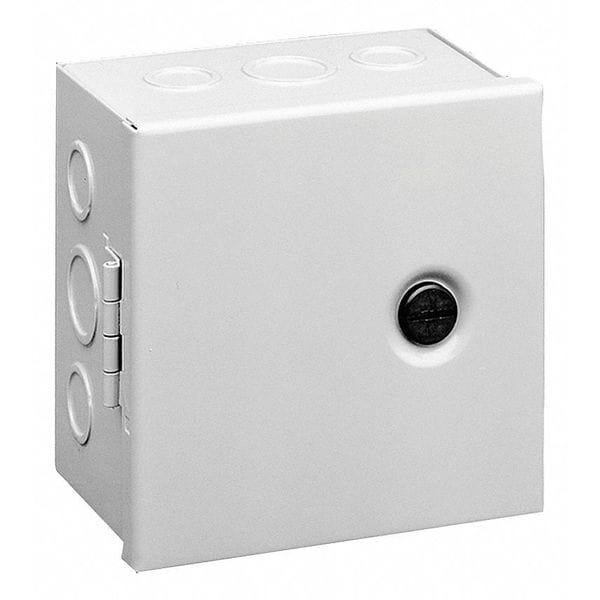

1/4 Turn Latch Electrical Enclosures, 10 in H, 6 in D, 10 in W, 1, Steel
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 10 in |
| Nominal Height | 10 in |
| Nominal Depth | 6 in |
| NEMA Enclosure Rating | 1 |
| Enclosure Material | Steel |
| Closure Method | 1/4 Turn Latch |
| Cover Closure Type | Hinged |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Silver |
| Finish | Polyester Powder |
| Mounting | Wall |
| Cover Style | Solid |
| Enclosure Cover Type | Hinged |
| IP Rating | IP30 |
| Enclosure Cover Features | 1/4 Turn Latch with Screw Driver Slot |
| Metal Gauge | 14/16 ga |
| Series | A90HC |
| Features | Mounting Holes |
| Solid / Clear Cover | Solid |
| Standards | CSA File No. 42184: Type 1, cUL Listed per CSA C22.2 No 40, File No E27525, IEC 60529, NEMA/EEMAC Type 1, UL 50, 50E Listed |
| Material of Enclosure | Carbon Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Weight | 8.2 |
| Includes Knockouts | Knockouts Included |
| Hazardous Location Specification | Not Applicable |
| Compatible Panel Model Number | Not Applicable |
| Body Material Thickness | 16 ga |
| Environment - MERCH | Indoor |
| Package Quantity | 1 |
