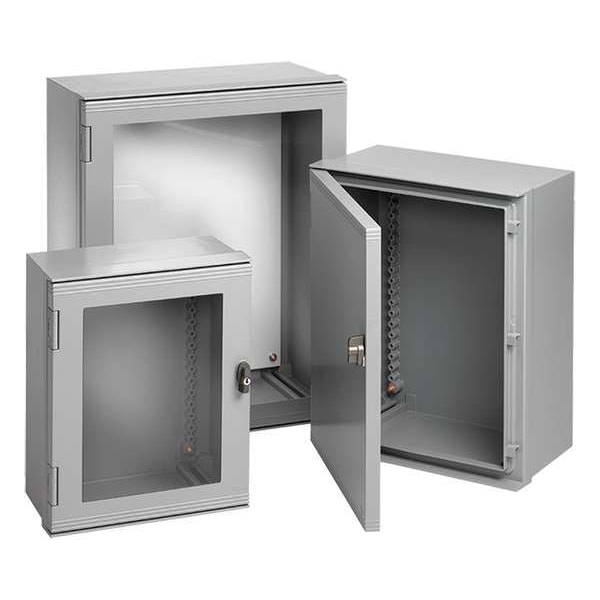

1/4 Turn Latch Electrical Enclosures, 23.62 in H, 9.84 in D, 20 in W, 12, 13, 4, 4X, Fiberglass
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 23.62 in |
| Nominal Depth | 9.84 in |
| NEMA Enclosure Rating | 12, 4, 13, 4X |
| Enclosure Material | Fiberglass |
| Closure Method | 1/4 Turn Latch |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Light Gray |
| Finish | Acrylic Enamel |
| Mounting | Wall |
| Cover Style | Solid |
| Gasket | Polyurethane |
| Interior Panel | 32FT40 |
| Includes | Mounting Bracket |
| Enclosure Cover Type | Hinged |
| IP Rating | IP66 |
| Enclosure NEMA Rating | NEMA 4X |
| Enclosure Cover Features | 1/4 Turn Latch |
| Material of Enclosure | Fiberglass |
| Standards | CSA File No 42186: Type 3, 3R, 4, 4X, 12, 13, cUL Listed Per CSA C22.2 No 94, Enclosure Flammability Evaluated per UL 508A, File No E61997, File No E619977, IEC 60529, Mounting Brackets Required to Meet UL/CSA External Mounting Requirements, NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13, Type 3, 3R, 4, 4X, 12, 13, UL 508A Listed, Window Flammability Evaluated Per UL 508A |
| Series | UX1-Ultrx |
| Solid / Clear Cover | Solid |
| Features | 4X Watertight, corrosion-resistant |
| Capacity | 4,970 cu in |
| Weight | 31.6 |
| Body Material Thickness | 0.15 in |
| Compatible Panel Model Number | A24P20, A24P20G |
| Gasket Material | Seamless Foam-In-Place |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Hazardous Location Specification | Not Applicable |
| Package Quantity | 1 |
