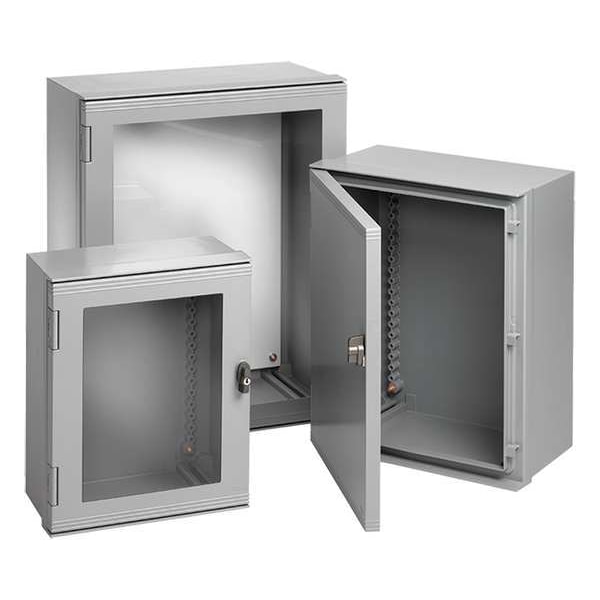

1/4 Turn Latch Electrical Enclosures, 29.53 in H, 11.81 in D, 24 in W, 12, 13, 4, 4X, Fiberglass
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 24 in |
| Nominal Height | 29.53 in |
| Nominal Depth | 11.81 in |
| NEMA Enclosure Rating | 12, 4, 13, 4X |
| Enclosure Material | Fiberglass |
| Closure Method | 1/4 Turn Latch |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Light Gray |
| Finish | Acrylic Enamel |
| Mounting | Wall |
| Cover Style | Solid |
| Interior Panel | 32FT50 |
| Series | UX1-Ultrx |
| Enclosure NEMA Rating | NEMA 4X |
| IP Rating | IP66 |
| Standards | CSA File No 42186: Type 3, 3R, 4, 4X, 12, 13, cUL Listed Per CSA C22.2 No 94, Enclosure Flammability Evaluated per UL 508A, File No E61997, File No E619977, IEC 60529, Mounting Brackets Required to Meet UL/CSA External Mounting Requirements, NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13, Type 3, 3R, 4, 4X, 12, 13, UL 508A Listed, Window Flammability Evaluated Per UL 508A |
| Solid / Clear Cover | Solid |
| Enclosure Cover Features | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Material of Enclosure | Fiberglass |
| Includes | Mounting Bracket |
| Gasket | Polyurethane |
| Features | 4X Watertight, corrosion-resistant |
| Weight | 43.7 |
| Capacity | 8,837 cu in |
| Body Material Thickness | 0.15 in |
| Compatible Panel Model Number | A30P24, A30P24G |
| Includes Knockouts | Knockouts Not Included |
| Hazardous Location Specification | Not Applicable |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Gasket Material | Seamless Foam-In-Place |
| Package Quantity | 1 |
