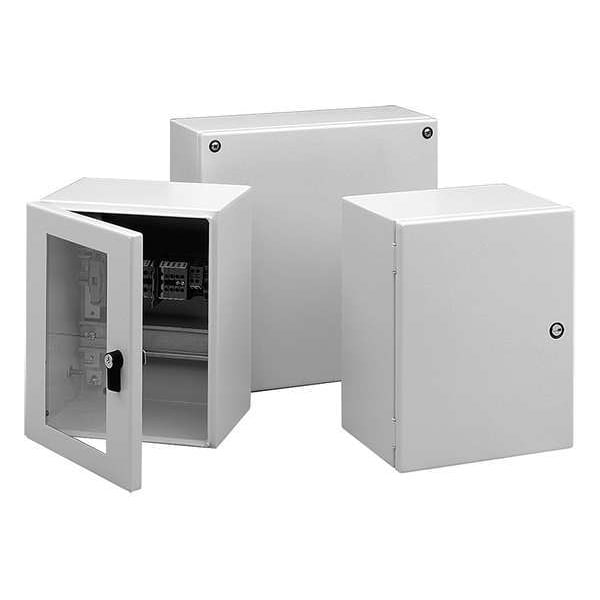

1/4 Turn Latch Electrical Enclosures, 7.87 in H, 4.72 in D, 6 in W, 12, 3, 4, Steel
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 6 in |
| Nominal Height | 7.87 in |
| Nominal Depth | 4.72 in |
| NEMA Enclosure Rating | 12, 4, 3 |
| Enclosure Material | Steel |
| Closure Method | 1/4 Turn Latch |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Light Gray |
| Finish | Textured Polyester Powder |
| Mounting | Wall |
| Cover Style | Solid |
| Solid / Clear Cover | Solid |
| Includes | Grounding Hardware, Panel Mounting Screws, Sealing Washer |
| Series | A54 |
| Metal Gauge | 16 ga |
| Enclosure NEMA Rating | NEMA 4 |
| IP Rating | IP66 |
| Enclosure Cover Type | Hinged |
| Standards | CSA, File No 42186: Type 4 and 12, cUL Listed Per CSA C22.2 No 94, File No E61997, IEC 60529, Mounting Brackets Required to Meet UL/CSA External Mounting Requirements, NEMA/EEMAC Type 4 and 12, Type 3, 4, 12, UL 508A Listed |
| Gasket | Neoprene |
| Material of Enclosure | Steel |
| Enclosure Cover Features | 1/4 Turn Latch with Screw Driver Slot |
| Interior Panel | 32FE89 |
| Features | 4 Watertight |
| Weight | 4.2 |
| Includes Knockouts | Knockouts Not Included |
| Compatible Panel Model Number | LP2015, LP2015G |
| Gasket Material | Seamless Foam-In-Place |
| Hazardous Location Specification | Not Applicable |
| Body Material Thickness | 16 ga |
| Environment - MERCH | Washdown |
| Package Quantity | 1 |
