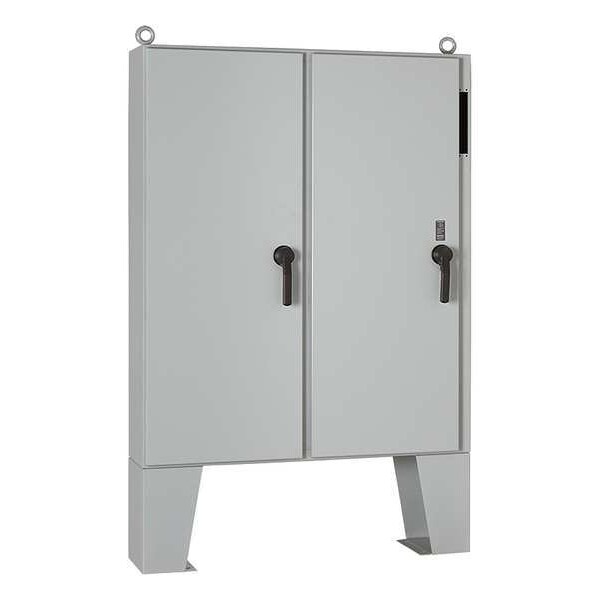

3 Point Latch with Padlock Handle Electrical Enclosures, 60.13 in H, 12.12 in D, 49-3/4 in W, 12
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 49-3/4 in |
| Nominal Height | 60.13 in |
| Nominal Depth | 12.12 in |
| NEMA Enclosure Rating | 12 |
| Enclosure Material | Steel |
| Closure Method | Latch |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Floor |
| Cover Style | Solid |
| Metal Gauge | 12 ga |
| Solid / Clear Cover | Solid |
| Interior Panel | 32FR56 |
| Includes | Door Hardware |
| Standards | CSA File No 42186: Type 12, cUL Listed Per CSA C22.2 No 94, File No E61997, IEC 60529, UL 508A Listed |
| Material of Enclosure | Carbon Steel |
| Enclosure Cover Type | Hinged |
| Enclosure Cover Features | Heavy Duty Handle with 3 Internal Locking Points |
| IP Rating | IP55 |
| Series | A21 |
| Enclosure NEMA Rating | NEMA 12 |
| Gasket | Neoprene |
| Features | 12 Indoor, dust-resistant |
| Load Capacity | Not Applicable |
| Weight | 502 |
| Body Material Thickness | 11 ga |
| Gasket Material | Neoprene |
| Includes Knockouts | Knockouts Not Included |
| Hazardous Location Specification | Not Applicable |
| Compatible Panel Model Number | A60P48, A60P48G |
| Environment - MERCH | Dust Tight |
| Package Quantity | 1 |
