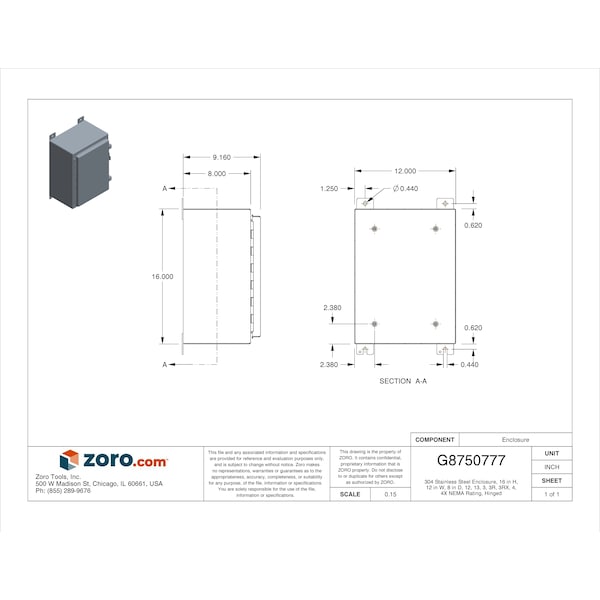

304 Stainless Steel Electrical Enclosures, 16 in H, 8 in D, 12 in W, NEMA 4X, Hinged
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 12 in |
| Nominal Height | 16 in |
| Nominal Depth | 8 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Clamps |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | #4 Brushed |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Enclosure Cover Features | Clamps |
| Series | A4SW3 |
| Standards | CSA File No 42186: Type 4, 4X, 12, cUL Listed Per CSA C22.2 No 94, File No E61997, IEC 60529, NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13, UL 508A Listed |
| Gasket | Seamless Foam-In-Place |
| Interior Panel | 32FT25 |
| Metal Gauge | 14 ga |
| IP Rating | IP66 |
| Features | 4X Watertight, corrosion-resistant |
| Enclosure Material | Stainless Steel |
| Weight | 23.6 |
| Clamp Quantity | 4 |
| Data Pocket | Small |
| Includes Knockouts | Knockouts Not Included |
| Compatible Panel Model Number | A16P12G |
| Gasket Material | Seamless Foam-In-Place |
| Body Material Thickness | 14 ga |
| Hazardous Location Specification | Not Applicable |
| Cover Closure Type | Hinged |
| Cover Style | Solid |
| Environment - MERCH | Washdown and Corrosion Resistant |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R, 3, 3RX |
| Package Quantity | 1 |
