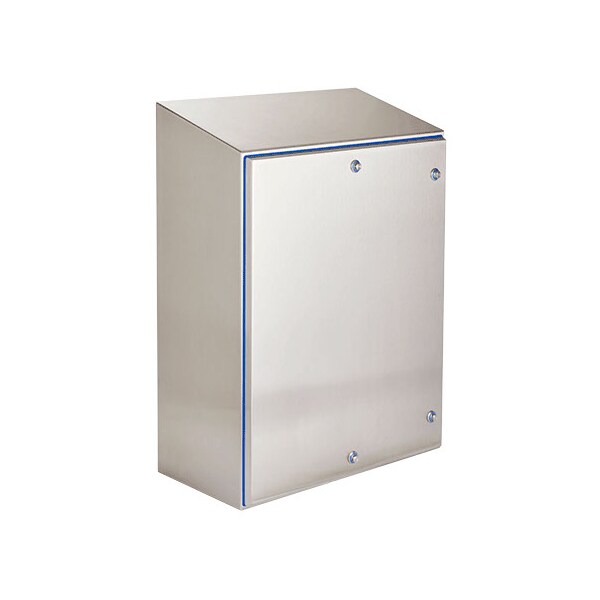

304 Stainless Steel Electrical Enclosures, 20 in H, 10 in D, 20 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 20 in |
| Nominal Depth | 10 in |
| Metallic / Non-Metallic | Metallic |
| Color | Natural |
| Finish | #4 Brushed |
| Mounting | Wall |
| Enclosure NEMA Rating | NEMA 4X |
| Enclosure Cover Type | Hinged |
| Solid / Clear Cover | Solid |
| IP Rating | IP66 |
| Material of Enclosure | 304 Stainless Steel |
| Standards | UL 508A Listed; Type 4, 4X, 12; File Number E61997; cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File Number; E61997; UL and cUL Classified to IEC 60529, IP66, IP69; File Number; E503705; Mounting brackets required to meet UL/cUL external mounting requirement.; HOFFMAN Industrial Control Enclosures / Models HSDS##SS and HSDH##SS / HyShed Screw Cover and Hinged Cover holds a 3-A SSI; Replacement Parts and System Component Qualification Certificate and conforms to applicable provisions of 3-A Sanitary Standard for General Requirements, ANSI/3-A 00-01-2018; NSF 169 Special Purpose Food Equipment and Devices; 3-A SSI Replacement Parts and System Component Qualification; Certificate; NEMA/EEMAC Type 4, 4X, 12; DIN 40050-9, IP69K; IEC 60529, IP66, IP69 |
| Features | 12 Indoor, dust-resistant |
| Weight | 48.9 |
| Latch Quantity | 4 |
| Replacement Gasket | HSDH2020GSK |
| Package Quantity | 1 |
