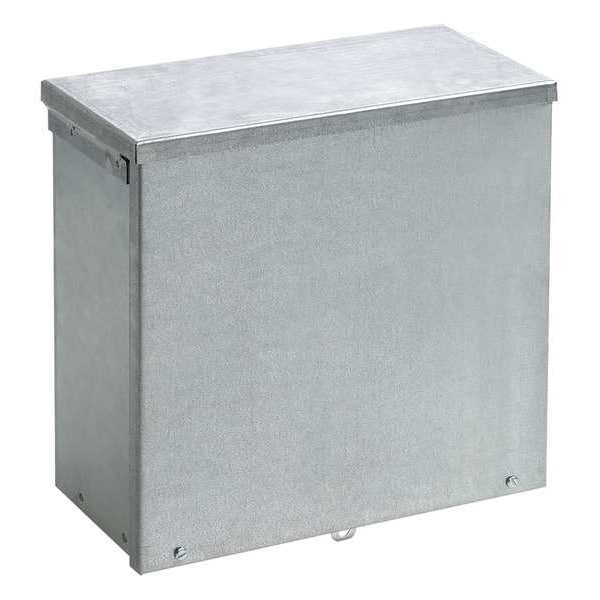

Captive Screws Electrical Enclosures, 18 in H, 6 in D, 18 in W, 3R, Steel
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 18 in |
| Nominal Height | 18 in |
| Nominal Depth | 6 in |
| NEMA Enclosure Rating | 3R |
| Enclosure Material | Steel |
| Closure Method | Screws |
| Cover Closure Type | Screw On |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Silver |
| Finish | Unpainted |
| Mounting | Wall |
| Cover Style | Solid |
| Standards | cUL Listed Per CSA C22.2 No 94, File No E27525, IEC 60529, NEMA/EEMAC Type 3R, Type 3R, UL50, 50E Listed |
| Series | A90G3 |
| Enclosure Cover Features | Screw Latch |
| Material of Enclosure | Carbon Steel |
| Solid / Clear Cover | Solid |
| IP Rating | IP32 |
| Metal Gauge | 14/16 ga |
| Enclosure Cover Type | Screw On |
| Features | Mounting Holes |
| Enclosure NEMA Rating | NEMA 3R |
| Includes | Screws |
| Body Material Thickness | 16 ga |
| Hazardous Location Specification | Not Applicable |
| Environment - MERCH | Weather Resistant |
| Compatible Panel Model Number | Not Applicable |
| Includes Knockouts | Knockouts Included |
| Package Quantity | 1 |
