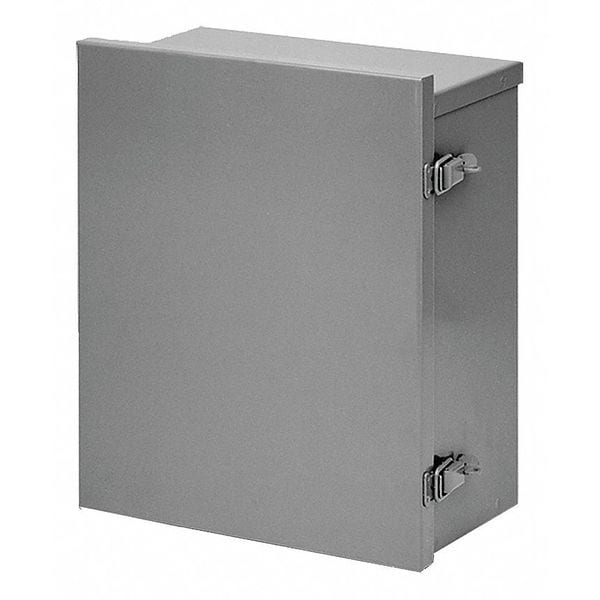

Carbon Steel Electrical Enclosures, 12 in H, 6 in D, 12 in W, NEMA 3R, Lift Off Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 12 in |
| Nominal Height | 12 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 3R |
| Material of Enclosure | Carbon Steel |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Gasket | Neoprene |
| Series | A3LO |
| Features | Mounting Holes |
| IP Rating | IP32 |
| Standards | CSA, File 42184: Type 3R, cUL Listed per CSA C22.2 No 94 File No E27567, File No E27567, IEC 60529, NEMA/EEMAC Type 3R, UL 50, 50E Listed |
| Interior Panel | 32FR63 |
| Metal Gauge | 14/16 ga |
| Enclosure Cover Features | Lift Off |
| Enclosure Material | Steel |
| Weight | 12 |
| Body Material Thickness | 16 ga |
| Includes Knockouts | Knockouts Not Included |
| NEMA Enclosure Rating | 3R |
| Hazardous Location Specification | Not Applicable |
| Cover Closure Type | Hinged |
| Environment - MERCH | Weather Resistant |
| Compatible Panel Model Number | A12P10 |
| Cover Style | Solid |
| Gasket Material | Neoprene |
| Package Quantity | 1 |
