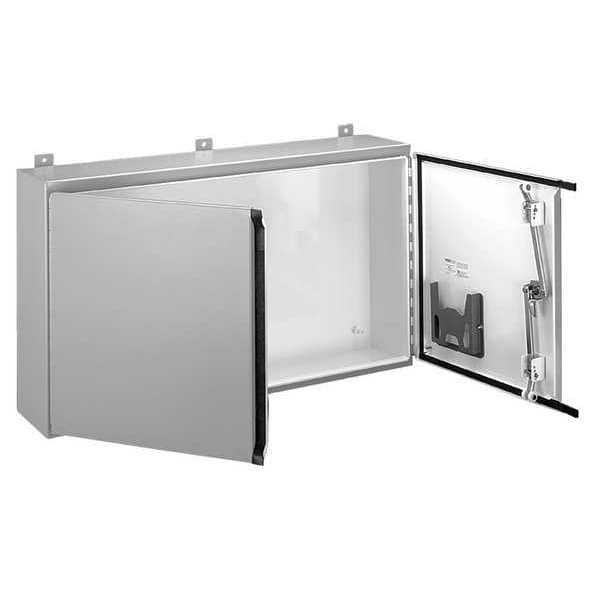

Carbon Steel Electrical Enclosures, 30 in H, 10 in D, 60 in W, NEMA 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 60 in |
| Nominal Height | 30 in |
| Nominal Depth | 10 in |
| Enclosure NEMA Rating | NEMA 12 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| IP Rating | IP55 |
| Series | A12 |
| Gasket | Neoprene |
| Metal Gauge | 14/16 ga |
| Enclosure Cover Features | Latch with 3 Internal Locking Points |
| Features | Mounting Holes |
| Standards | CSA, File No 42186:, cUL Listed Per CSA C22.2 No 94, File No E61997, IEC 60529, NEMA/EEMAC, UL 508A Listed |
| Interior Panel | Mfr. No. A60P30 |
| Enclosure Material | Steel |
| Weight | 136 |
| Body Material Thickness | 16 ga |
| Cover Closure Type | Hinged |
| Hazardous Location Specification | Not Applicable |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Dust Tight |
| Gasket Material | Neoprene |
| Cover Style | Solid |
| NEMA Enclosure Rating | 12, 13 |
| Compatible Panel Model Number | A60P30, A60P30G |
| Package Quantity | 1 |
