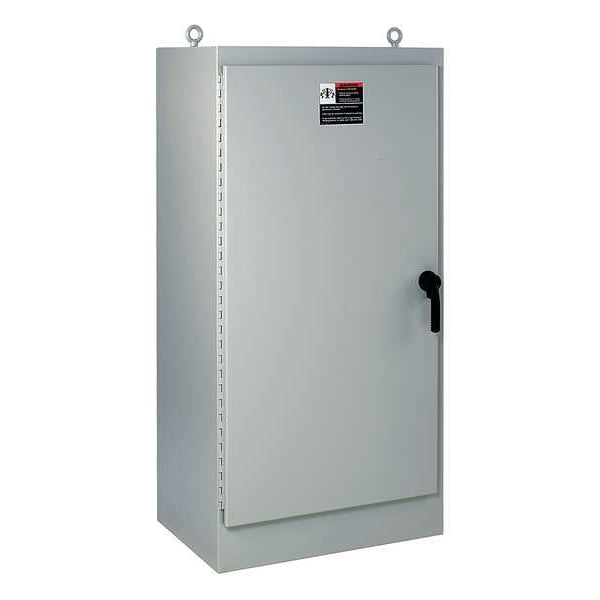

Carbon Steel Electrical Enclosures, 72.06 in H, 24.06 in D, 37 in W, NEMA 4, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 37 in |
| Nominal Height | 72.06 in |
| Nominal Depth | 24.06 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Carbon Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Freestanding |
| Solid / Clear Cover | Solid |
| Features | Data Pocket, Lifting Eyes |
| Metal Gauge | 12 ga |
| Gasket | Neoprene |
| IP Rating | IP66 |
| Interior Panel | Mfr. No. A72P36F1 |
| Standards | cUL Listed Per CSA C22.2 No 94, EIA RS310D, File No E61997, IEC 60529, Type 4, 12, UL 508A Listed |
| Enclosure Cover Features | Heavy Duty Handle with 3 Internal Locking Points |
| Series | A4L3 |
| Enclosure Material | Steel |
| Load Capacity | Not Applicable |
| Weight | 423 |
| Body Material Thickness | 12 ga |
| Environment - MERCH | Washdown |
| NEMA Enclosure Rating | 12, 4 |
| Includes Knockouts | Knockouts Not Included |
| Compatible Panel Model Number | A72P36F1 |
| Cover Style | Solid |
| Hazardous Location Specification | Not Applicable |
| Cover Closure Type | Hinged |
| Gasket Material | Neoprene |
| Package Quantity | 1 |
