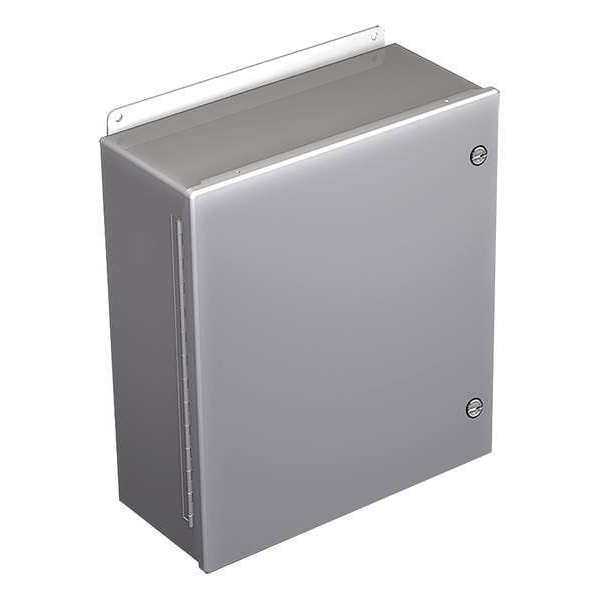

Carbon Steel Electrical Enclosures, 8 in H, 4 in D, 8 in W, NEMA 4, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 8 in |
| Nominal Height | 8 in |
| Nominal Depth | 4 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Carbon Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Silver |
| Finish | Textured Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Features | External-Wall Mounting Bracket |
| IP Rating | IP66 |
| Enclosure Cover Features | 1/4 Turn Latch with Screw Driver Slot |
| Series | A51FL |
| Metal Gauge | 14/16 ga |
| Gasket | Neoprene |
| Interior Panel | 32FR96 |
| Standards | C22.2 No 94 Listed, cUL Listed per CSA, File No E61997, IEC 60529, NEMA/EEMAC Type 4 and 12, Type 4, 12, UL 508A Listed |
| Enclosure Material | Steel |
| Weight | 6.7 |
| Latch Quantity | 2 |
| Body Material Thickness | 14 ga |
| Environment - MERCH | Washdown |
| Cover Closure Type | Hinged |
| Cover Style | Solid |
| NEMA Enclosure Rating | 12, 4 |
| Includes Knockouts | Knockouts Not Included |
| Gasket Material | Neoprene |
| Compatible Panel Model Number | A8P8, A8P8G |
| Hazardous Location Specification | Not Applicable |
| Package Quantity | 1 |
