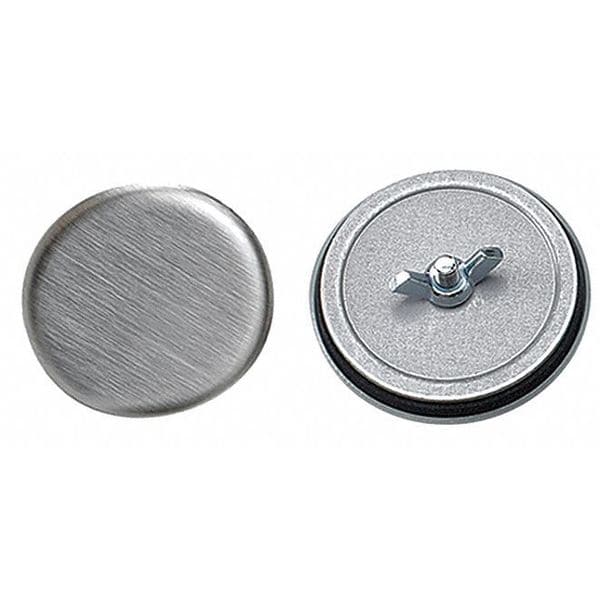

Conduit Hole Seal, 1.37 In Hole, SS
| Item | Hole Seal |
|---|---|
| Length | 7-1/2 in |
| Finish | Polished |
| Width | 5 in |
| Height | 0.7 in |
| Color | Unpainted |
| Designed To | Seal Unused Pushbutton or Conduit Holes |
| Gasket | Oiltight |
| Hole Dia. | 1.37 in |
| Material | Stainless Steel |
| For Use With | Hole Enclosures |
| Includes | Oil Resistant Gasket |
| Conduit Size | 1 in |
| NEMA Enclosure Type | 12, 4, 3R, 13, 4X |
| Hol-Sealer Diameter (millimetre) | 48 |
| Thickness (T) (gauge) | 16 |
| Max Hole Diameter (inch) | 1.38 |
| Modification Services | Yes |
| Usage | 1-in. conduit holes |
| Min Hole Diameter (millimetre) | 35 |
| Type Number | Type 3R |
| IP Rating | IP66 |
| Size | 1.88 Dia. in |
| Accessory Type | Hole Seal |
| Hol-Sealer Diameter (inch) | 1.88 |
| Thickness (T) (millimetre) | 1.5 |
| Thickness | 16 ga / 1.5 mm |
| Standards | UL 508A Component Recognized; Type 3R, 4, 12, 13; File No. E61997 (MS); UL 508A Component Recognized; Type 3R, 4, 4X, 12, 13; File No. E61997 (SS); Steel Hole Seals; CSA File No. 42186; Type 3R, 4, 12, 13; NEMA/EEMAC Type 3R, 4, 12, 13; IEC 60529, IP66; Stainless Steel Hole Seals; CSA File No. 42186; Type 3R, 4, 4X, 12, 13; NEMA/EEMAC Type 3R, 4, 4X, 12, 13; IEC 60529, IP66 |
| Min Hole Diameter | 35 mm |
| Max Hole Diameter | 1.38 in |
| Hol-Sealer Diameter | 1.88 in / 48 mm |
| For Hole Diameter - Maximum | 1.38 in |
| Oiltight Seal | Oiltight |
| Conduit Hole Size | 1 in |
| For Hole Type | Conduit |
| NEMA Enclosure Rating | 3R |
| Package Quantity | 1 |
