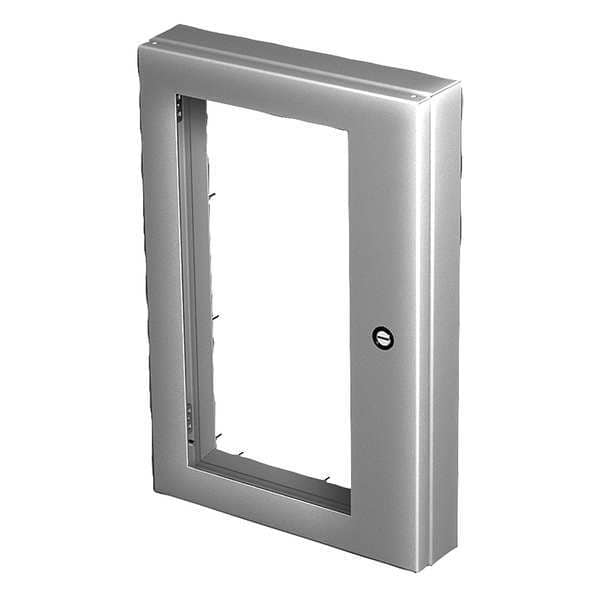

Enclosure Window Kit, 12.2in. Hx14.6in. W
| Item | Enclosure Window Kit |
|---|---|
| Length | 18 in |
| Width | 15.7 in |
| For Use With | NEMA 4, 12 Enclosure |
| Height | 6.2 in |
| Color | Gray |
| Finish | Powder Coated |
| Cut Out Depth | 0.76 in |
| Frame Material | Steel |
| Frame Width | 12-1/4 in |
| Frame Depth | 2-1/2 in |
| Cut Out Width | 9.83 in |
| Frame Height | 14-1/2 in |
| Includes | Mounting Hardware |
| Description/Special Features | Deep-Hinged 304 Stainless Steel with Polycarbonate Window, Conveniently Sized to Allow Direct Mounting In The Usable Door Area of Hoffman Nema and Concept(R) Wall-Mount Enclosures, As Well As Any Hoffman Enclosure With A Suitably Sized Mounting Surface |
| Cut Out Height | 8.68 in |
| Material | Mild Steel |
| Nema Rating | 4 Watertight |
| IP Rating | IP66 |
| Modification Services | Yes |
| Thickness (T) (gauge) | 14 |
| Color Code | ANSI 61 |
| Window Size (M x N) (inch) | 8.68 x 9.83 |
| Accessory Type | Window Kits |
| Size | 12.19 x14.56 in |
| Thickness (T) (millimetre) | 1.9 |
| Window Size (M x N) (millimetre) | 220 x 250 |
| Type Number | Type 4 |
| Standards | UL 508A Listed; Type 4, 12; File No. E61997 (MS); cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997 (MS); UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 (SS); cUL Listed per CSA C22.2, No. 94; Type 3R, 4, 4X, 12; File No. E61997 (SS); Stainless Steel; NEMA/EEMAC Type 3R, 4, 4X, 12; IEC 60529, IP66; Mild Steel; NEMA/EEMAC Type 4, 12; IEC 60529, IP66 |
| Thickness | 14 ga / 1.9 mm |
| Window Size | 220 x 250 mm / 8.68 x 9.83 in |
| For NEMA Enclosure Rating | 4 |
| Window Width | 8-11/16 in |
| Window Height | 9-3/4 in |
| Window Material | Polycarbonate |
| Package Quantity | 1 |
